KV-S-442 Fixed Bridge Automatic Video Measuring Instrument With Servo Motor
-
Highlight
Automatic Video Measuring Instrument
,Fixed Bridge Video Measuring Instrument
,Servo Motor Video Measuring Instrument
-
Travel400x400x200mm
-
StructureFixed-bridge
-
Base MaterialMarble
-
Image Sensors1/2" Digital CCD, High Pixels, Global Color, Large Field Of View
-
Resolution0.5µm
-
Lens6.5X
-
Magnifier Rate*120X-126X(0.7X-4.5X)
-
Dimensions(mm)1350×950×1650
-
Instrument Weight (kg)710kg
-
Load-bearing (kg)25kg
-
Place of OriginGuangong/China
-
Brand Namekoqia
-
CertificationCE
-
Model NumberKV-S-442
-
Minimum Order Quantity1 Sets
-
PriceCan be discussed
-
Packaging DetailsPlywood
-
Delivery Time30 work days
-
Payment TermsL/C,T/T
-
Supply Ability100 Sets/Month

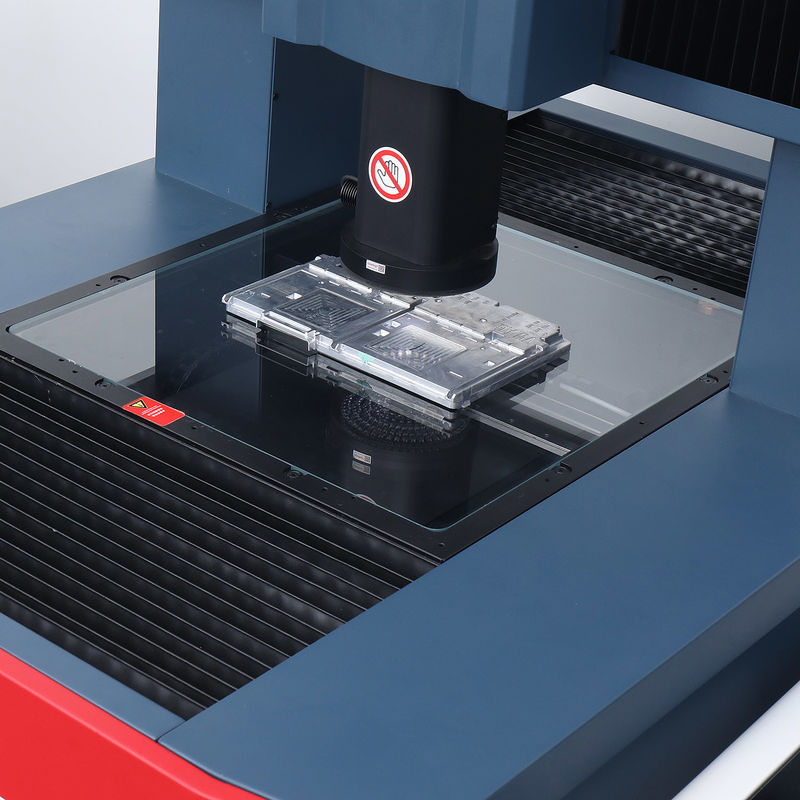

KV-S-442 Fixed Bridge Automatic Video Measuring Instrument With Servo Motor
KV-S-442 Servo Motor Fixed-bridge Automatic Video Measurement System
Product Introduction:
【 KV-S 】Series servo motor fixed bridge automatic measuring instrument, preferably high-density granite workbench, high compressive strength, low water absorption, high surface hardness and other advantages, combined with the self-developed load-bearing platform to ensure that the workpiece has no displacement during operation, and the stability is better;
Basic Functions:
Measurement Function:
Fields of Application:
Specifications:
|
Model |
KV-S-332 |
KV-S-442 |
KV-S-552 |
KV-S-662 |
|
|
Travel |
X(mm) |
300 |
400 |
500 |
600 |
|
Y(mm) |
300 |
400 |
500 |
600 |
|
|
Z(mm) |
200 |
200 |
200 |
200 |
|
|
Structure |
Fixed-bridge |
||||
|
Base Material |
Marble |
||||
|
Monitor |
24-inch LCD Monitor |
||||
|
Image Sensors |
1/2" digital CCD, high pixels, global color, large field of view |
||||
|
Resolution |
0.5µm |
||||
|
Lens |
6.5X |
||||
|
Magnifier Rate*1 |
20X-126X(0.7X-4.5X) |
||||
|
Lighting system |
Transmitted Light |
LED Telecentric Transmission Ilumination |
|||
|
Surface Light |
5 Rings and 8 Zone Split light |
||||
|
Coaxial Light |
Optional, LED light |
||||
|
Detection Accuracy*2 |
X/Y-axis |
(1.8+L/200)µm |
(2.0+L/200)µm |
(2.2+L/200)µm |
(2.4+L/200)µm |
|
Z-axis |
(5.0+L/200)µm |
||||
|
Maximum Speed |
XY(mm/s) |
300 mm/s |
|||
|
Z(mm/s) |
100 mm/s |
||||
|
Dimensions(mm) |
1150×850×1650 |
1350×950×1650 |
1550×1050×1650 |
1650×1250×1650 |
|
|
Instrument weight (kg) |
620kg |
710kg |
810kg |
920kg |
|
|
Load-bearing (kg) |
25kg |
||||
|
Power Supply |
1600W |
||||
|
Sensor Configuration |
Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe; |
||||
|
Motion Control |
Servo Control System |
||||
|
Measurement Software |
GQuick Series |
||||
|
Operating Voltage |
AC 220V,50/60Hz or others |
||||
|
Working Environment |
Temperature 20°C ±3°C, humidity 35~75% |
||||
*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
