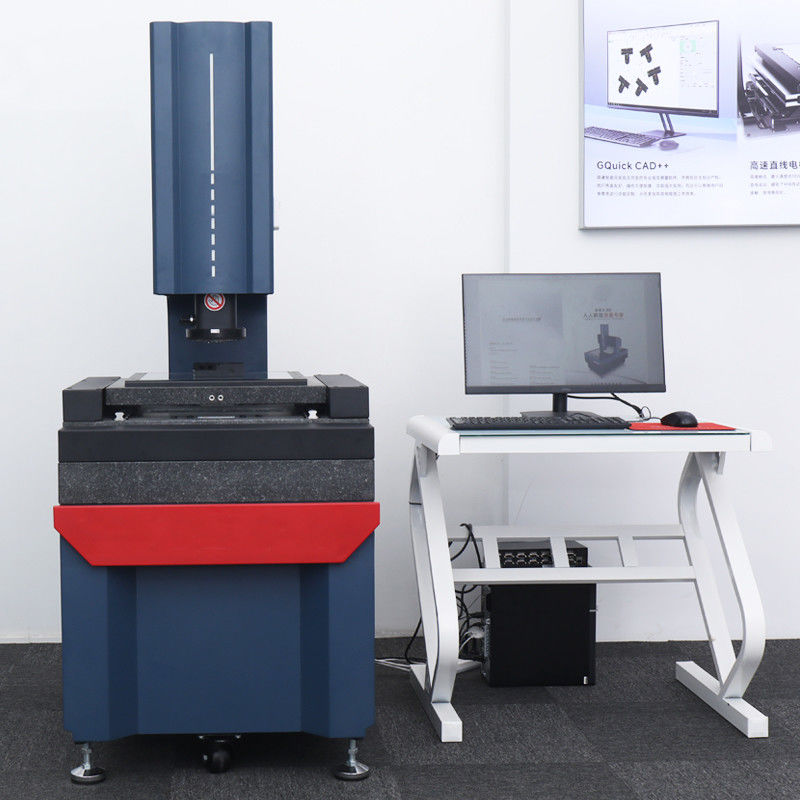

KV-Lite-322 Servo Motor Cantilever Automated Optical Comparator Video Measuring Machine
-
Highlight
Cantilever Optical Comparator
,Servo Motor Optical Comparator
,Cantilever Automated Optical Comparator
-
StructureCantilever
-
Base MaterialMarble
-
Image Sensors1/3" Digital CCD, High Pixels, Global Color, Large Field Of View
-
Resolution0.5µm
-
Lens6.5X
-
Magnifier Rate*130X-180X(0.7X-4.5X)
-
Load-bearing (kg)25kg
-
Power Supply1600W
-
Motion ControlServo Control System
-
Measurement SoftwareGQuick Series
-
Operating VoltageAC 220V,50/60Hz Or Others
-
Working EnvironmentTemperature 20°C ±3°C, Humidity 35~75%
-
Place of OriginGuangong/China
-
Brand Namekoqia
-
CertificationCE
-
Model NumberKV-Lite-322
-
Minimum Order Quantity1 Sets
-
PriceCan be discussed
-
Packaging DetailsPlywood
-
Delivery Time30 work days
-
Payment TermsL/C,T/T
-
Supply Ability100 Sets/Month
KV-Lite-322 Servo Motor Cantilever Automated Optical Comparator Video Measuring Machine
Optical Comparator KV-Lite-322 Servo Motor Cantilever Automatic Video Measuring Machine
Product Introduction:

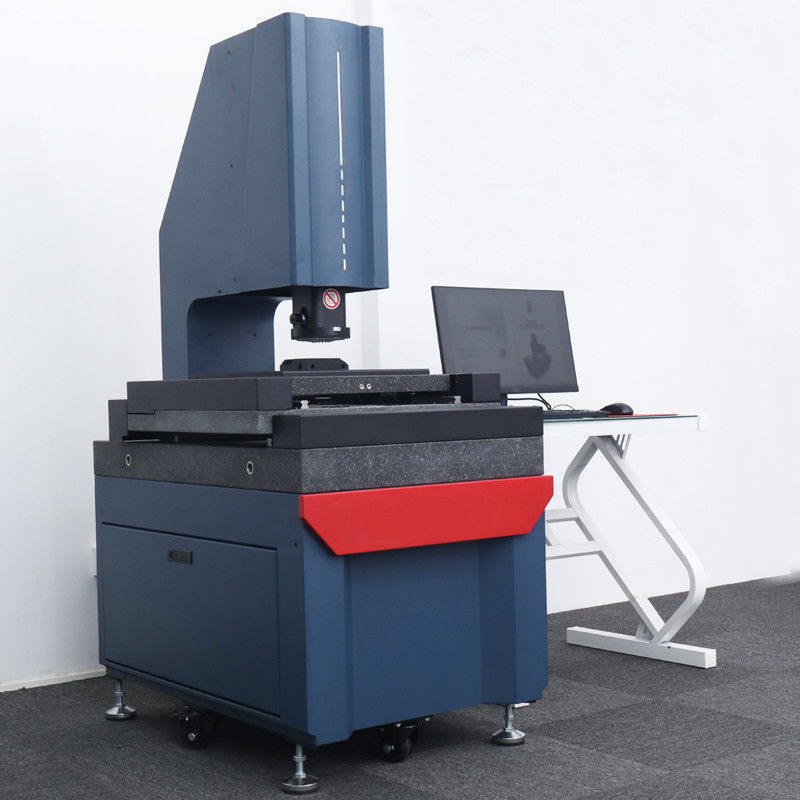

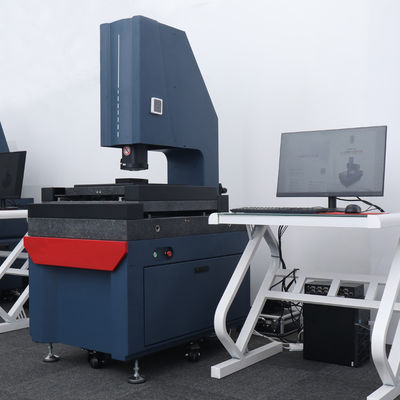

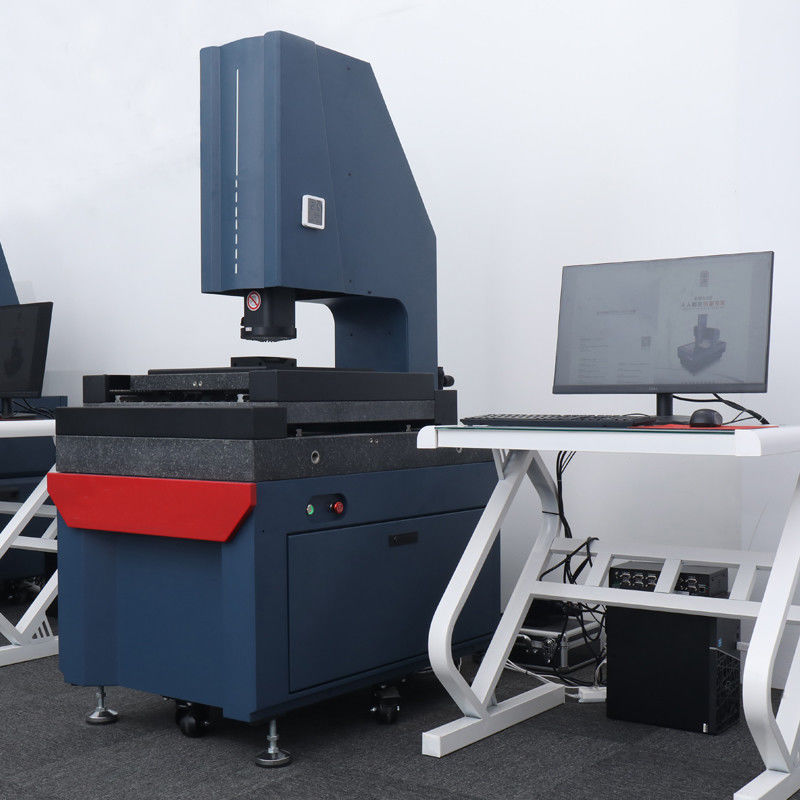

【 KV-Lite 】Series cantilevered fully automatic measuring instrument has a cantilevered structure, is compact and stable, and has high precision. It is suitable for rapid measurement of the dimensions on and around the production line
Basic Functions:
Measurement Function:
Fields of Application:
Specifications:
|
Model |
KV-Lite-322 |
KV-Lite-432 |
KV-Lite-542 |
|
|
Travel |
X(mm) |
300 |
400 |
500 |
|
Y(mm) |
200 |
300 |
400 |
|
|
Z(mm) |
200 |
200 |
200 |
|
|
Structure |
Cantilever |
|||
|
Base Material |
Marble |
|||
|
Image Sensors |
1/3" digital CCD, high pixels, global color, large field of view |
|||
|
Resolution |
0.5µm |
|||
|
Lens |
6.5X |
|||
|
Magnifier Rate*1 |
30X-180X(0.7X-4.5X) |
|||
|

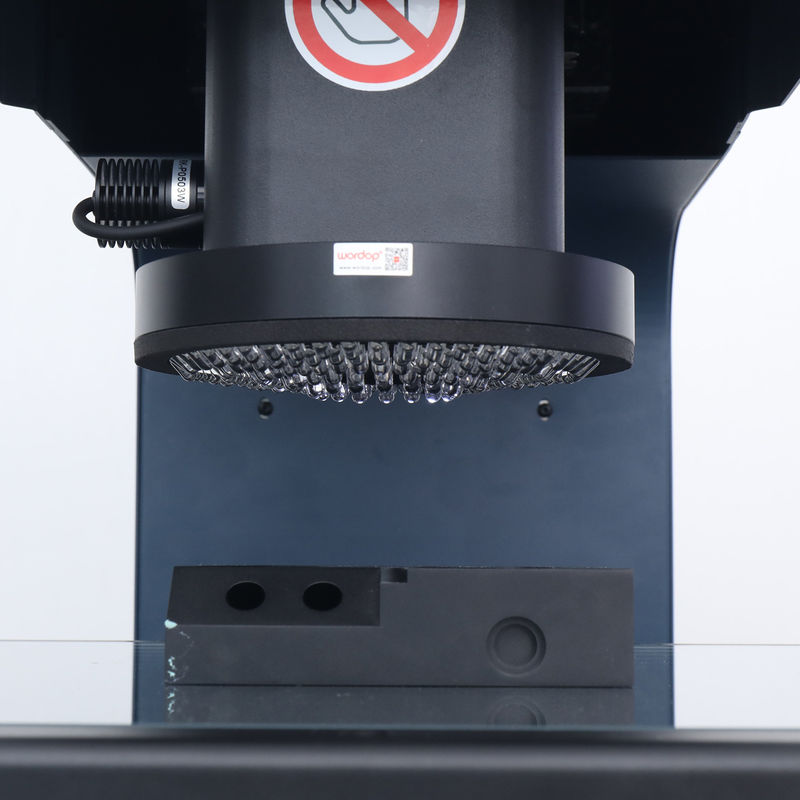

Lighting system |
Transmitted Light |
LED Telecentric Transmission Ilumination |
||
|
Surface Light |
5 Rings and 8 Zone Split light |
|||
|
Coaxial Light |
Optional, LED light |
|||
|
Detection Accuracy*2 |
X/Y-axis |
(2.2+L/200)µm |
(2.4+L/200)µm |
(2.6+L/200)µm |
|
Z-axis |
(5.0+L/200)µm |
|||
|
Maximum Speed |
XY(mm/s) |
300 mm/s |
||
|
Z(mm/s) |
100 mm/s |
|||
|
Dimensions(mm) |
750×850×1600 |
850×950×1600 |
950×1050×1600 |
|
|
Instrument weight (kg) |
380kg |
480kg |
580kg |
|
|
Load-bearing (kg) |
25kg |
|||
|
Power Supply |
1600W |
|||
|
Sensor Configuration |
Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe; |
|||
|
Motion Control |
Servo Control System |
|||
|
Measurement Software |
GQuick Series |
|||
|
Operating Voltage |
AC 220V,50/60Hz or others |
|||
|
Working Environment |
Temperature 20°C ±3°C, humidity 35~75% |
|||
*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
