8.3X Lens Vision Measuring System Automatic KV-Plus-8102 with Marble Base Material
-
Highlight
Marble Base Material Vision Measuring System
,8.3X Lens Vision Measuring System
,8.3X Lens Visual Measurement System
-
StructureMoving-bridge
-
Base MaterialMarble
-
Image Sensors1/2" Digital CCD, High Pixels, Global Color, Large Field Of View
-
Resolution0.1µm
-
Lens8.3X
-
Magnifier Rate*118X-165X(0.6X~5.0X)
-
Load-bearing (kg)30kg
-
Power Supply1600W
-
Motion ControlServo Control System
-
Measurement SoftwareGQuick Series
-
Operating VoltageAC 220V,50/60Hz Or Others
-
Working EnvironmentTemperature 20°C ±3°C, Humidity 35~75%
-
Place of OriginGuangong/China
-
Brand Namekoqia
-
CertificationCE
-
Model NumberKV-Plus-8102
-
Minimum Order Quantity1 Sets
-
PriceCan be discussed
-
Packaging DetailsPlywood
-
Delivery Time30 work days
-
Payment TermsL/C,T/T
-
Supply Ability100 Sets/Month

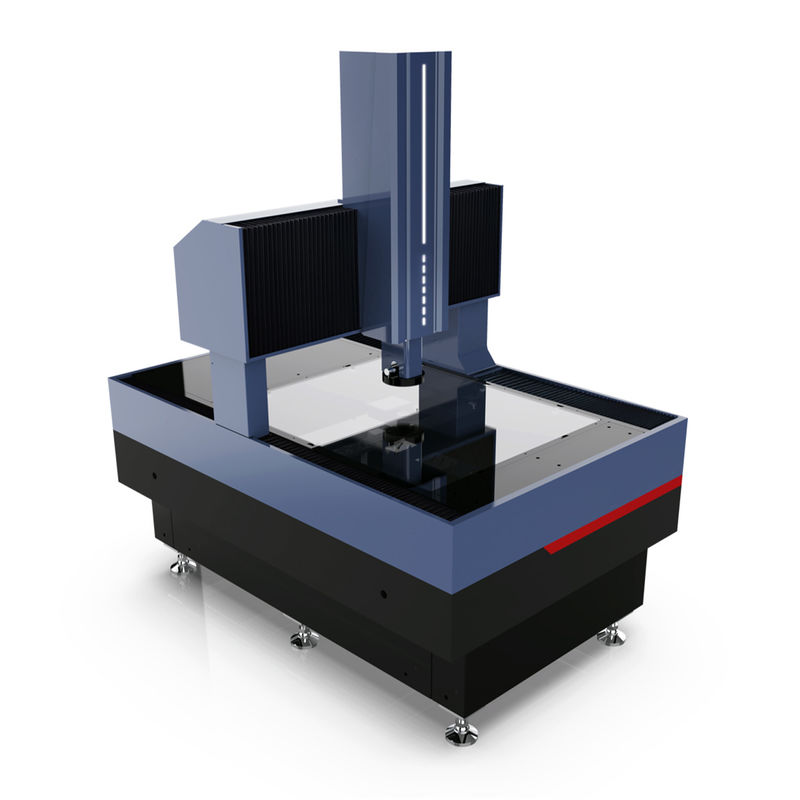

8.3X Lens Vision Measuring System Automatic KV-Plus-8102 with Marble Base Material
KV-Plus-8102 Linear Motor Moving-bridge High-end Automatic Vision Measuring System
Product Introduction:
【 KV-Plus 】Series with the large size of the platform and the movable bridge structure, it can achieve efficient and accurate measurement of large quantities of workpieces; It is suitable for the detection and quality control of precision parts, and has been widely used in automobile, machinery, electronics, hardware, plastics and other industries.
Basic Functions:
Measurement Function:
Fields of Application:
Specifications:
|
Model |
KV-Plus-682 |
KV-Plus-8102 |
KV-Plus-10122 |
KV-Plus-12162 |
|
|
Travel |
X(mm) |
600 |
800 |
1000 |
1200 |
|
Y(mm) |
800 |
1000 |
1200 |
1600 |
|
|
Z(mm) |
200 |
200 |
200 |
200 |
|
|
Structure |
Moving-bridge |
||||
|
Base Material |
Marble |
||||
|
Monitor |
24-inch LCD Monitor |
||||
|
Image Sensors |
1/2" digital CCD, high pixels, global color, large field of view |
||||
|
Resolution |
0.1µm |
||||
|
Lens |
8.3X |
||||
|
Magnifier Rate*1 |
18X-165X(0.6X~5.0X) |
||||
|
Lighting system |
Transmitted Light |
LED Telecentric Transmission Ilumination |
|||
|
Surface Light |
5 Rings and 8 Zone Split light |
||||
|
Coaxial Light |
Optional, LED light |
||||
|
Detection Accuracy*2 |
X/Y-axis |
(2.6+L/200)µm |
(3.0+L/200)µm |
(3.4+L/200)µm |
(3.8+L/200)µm |
|
Z-axis |
(5.0+L/200)µm |
||||
|
Maximum Speed |
XY(mm/s) |
400 mm/s |
|||
|
Z(mm/s) |
100 mm/s |
||||
|
Dimensions(mm) |
1150×1850×1660 |
1450×2250×1660 |
1750×2250×1660 |
1900×2700×1660 |
|
|
Instrument weight (kg) |
1630kg |
2120kg |
3020kg |
4300kg |
|
|
Load-bearing (kg) |
30kg |
||||
|
Power Supply |
1600W |
||||
|
Sensor Configuration |
Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe; |
||||
|
Motion Control |
Servo Control System |
||||
|
Measurement Software |
GQuick Series |
||||
|
Operating Voltage |
AC 220V,50/60Hz or others |
||||
|
Working Environment |
Temperature 20°C ±3°C, humidity 35~75% |
||||
*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
