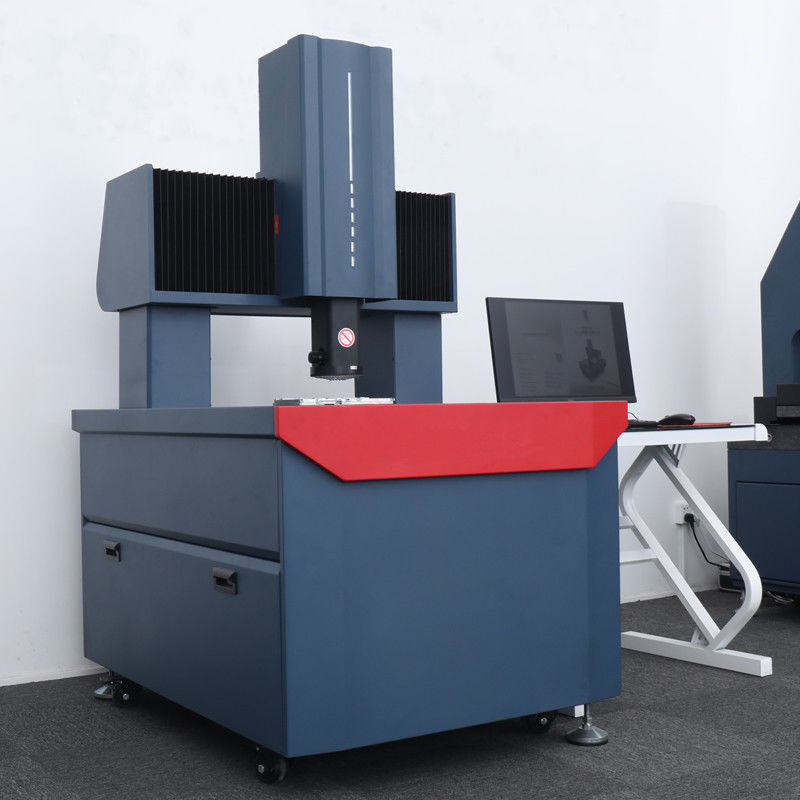

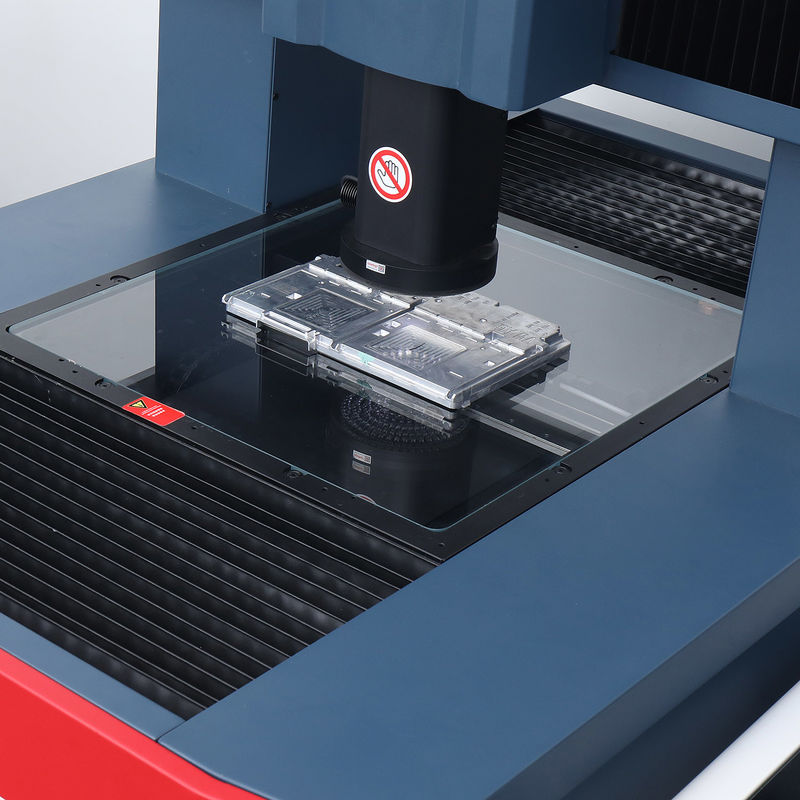

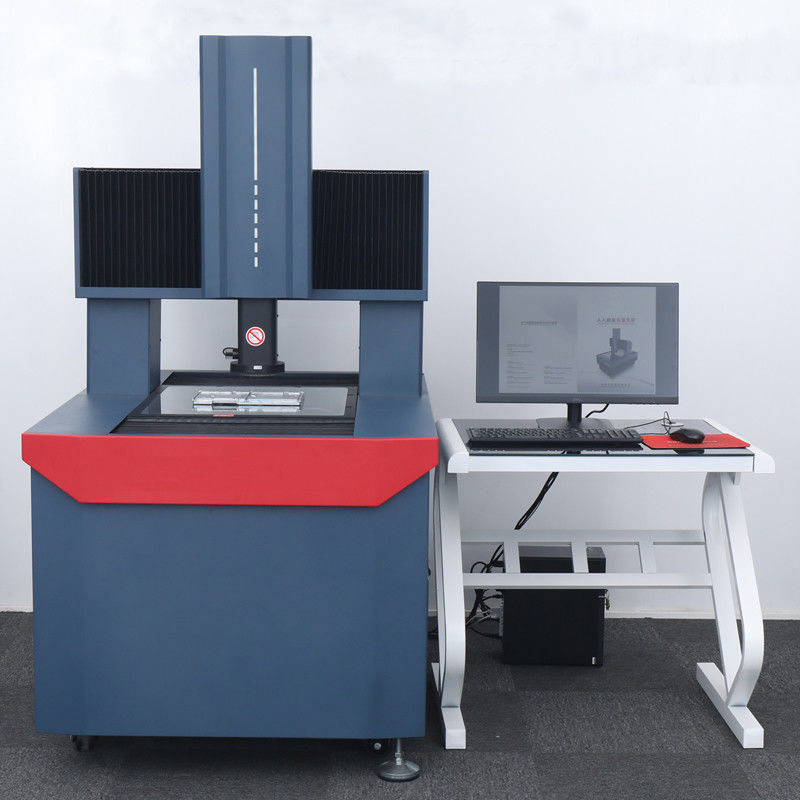

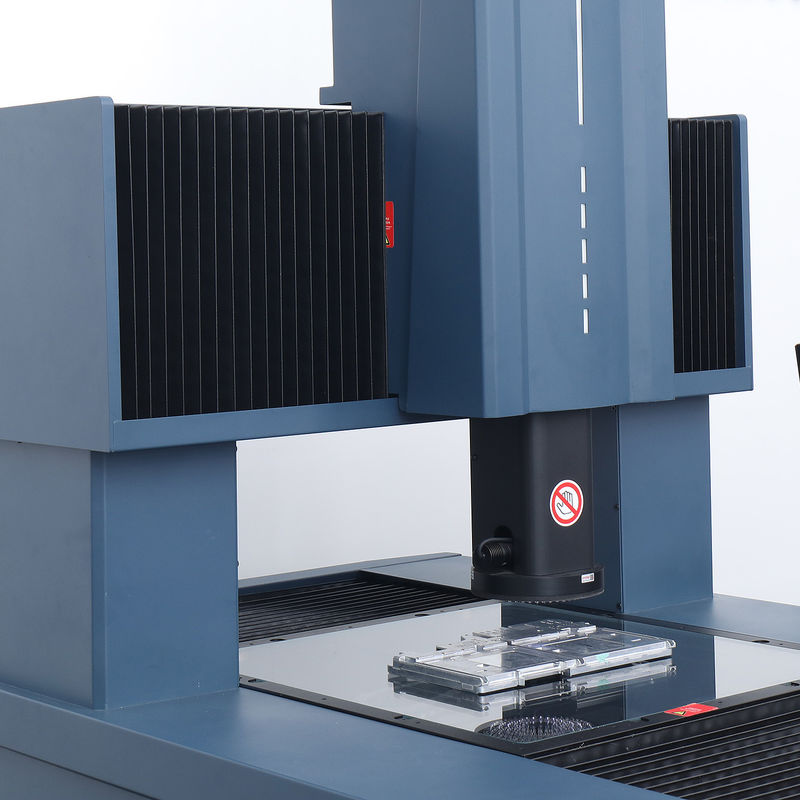

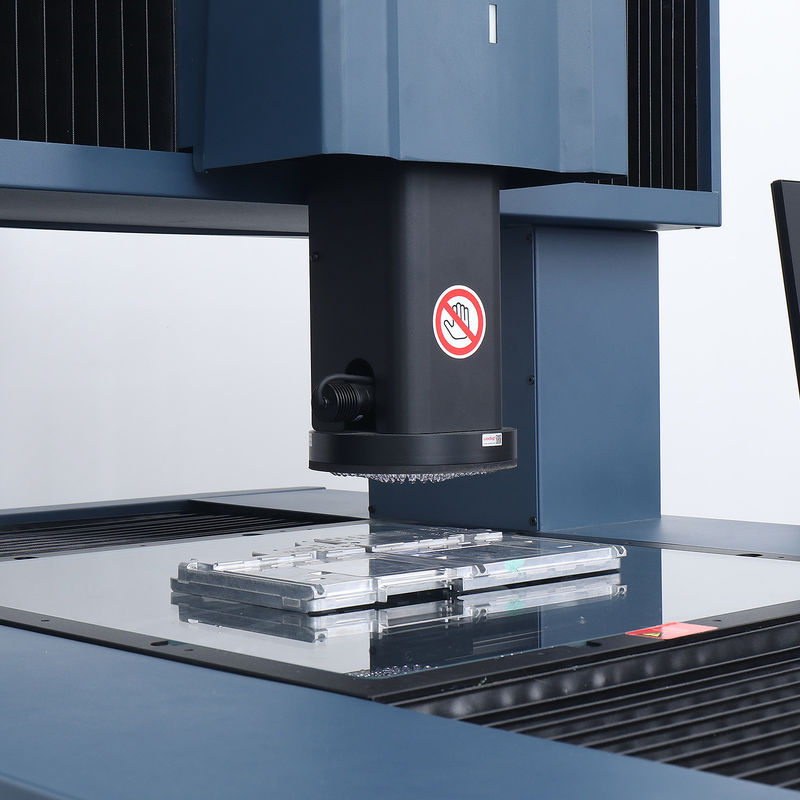

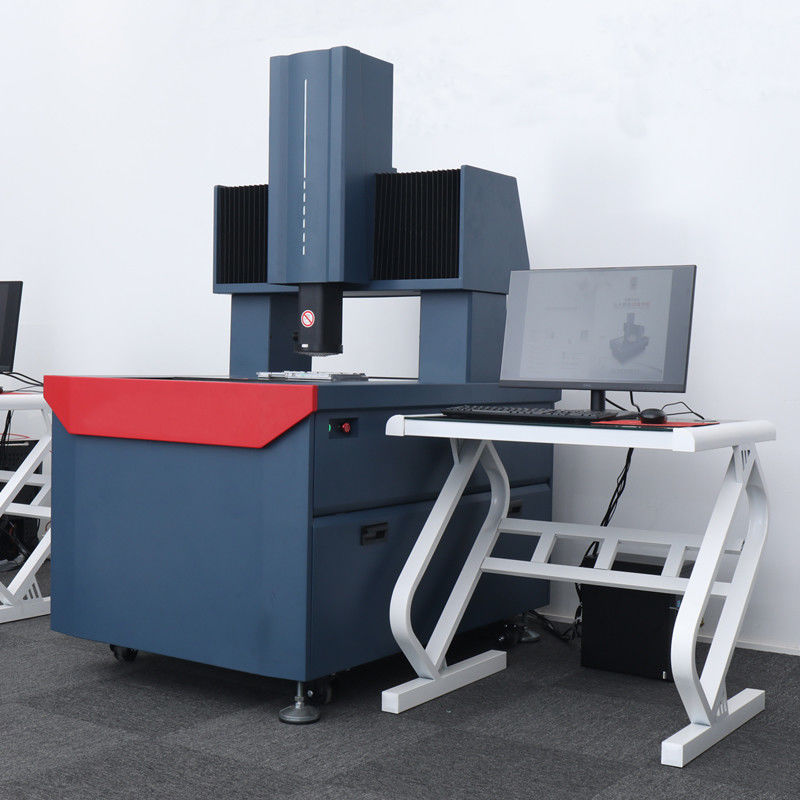

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens

Products - CMM Measuring Machine
  • Highlight

    Fixed Bridge CMM Measuring Machine

    ,

    6.5X Lens CMM Measuring Machine

    ,

    Automatic CMM Machine

  • Structure
    Fixed-bridge
  • Base Material
    Marble
  • Image Sensors
    1/2" Digital CCD, High Pixels, Global Color, Large Field Of View
  • Resolution
    0.5µm
  • Lens
    6.5X
  • Magnifier Rate*1
    20X-126X(0.7X-4.5X)
  • Load-bearing (kg)
    25kg
  • Power Supply
    1600W
  • Operating Voltage
    AC 220V,50/60Hz Or Others
  • Place of Origin
    Guangong/China
  • Brand Name
    koqia
  • Certification
    CE
  • Model Number
    KV-S-662
  • Minimum Order Quantity
    1 Sets
  • Price
    Can be discussed
  • Packaging Details
    Plywood
  • Delivery Time
    30 work days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    100 Sets/Month

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens

  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
  • KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens
Get Price Contact Now

KV-S-662 Servo Motor Fixed-bridge Automatic CMM Measuring Machine

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 0

Product Introduction:

【 KV-S 】Series servo motor fixed bridge automatic measuring instrument, preferably high-density granite workbench, high compressive strength, low water absorption, high surface hardness and other advantages, combined with the self-developed load-bearing platform to ensure that the workpiece has no displacement during operation, and the stability is better;


KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 1

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 2

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 3

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 4

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 5

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 6

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 7

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 8

Basic Functions:

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 9

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 10

Measurement Function:

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 11

Fields of Application:

KV-S-662 Fixed Bridge Automatic CMM Measuring Machine With 6.5X Lens 12


Specifications:

Model

KV-S-332

KV-S-442

KV-S-552

KV-S-662





Travel

X(mm)

300

400

500

600

Y(mm)

300

400

500

600

Z(mm)

200

200

200

200

Structure

Fixed-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.5µm

Lens

6.5X

Magnifier Rate*1

20X-126X(0.7X-4.5X)

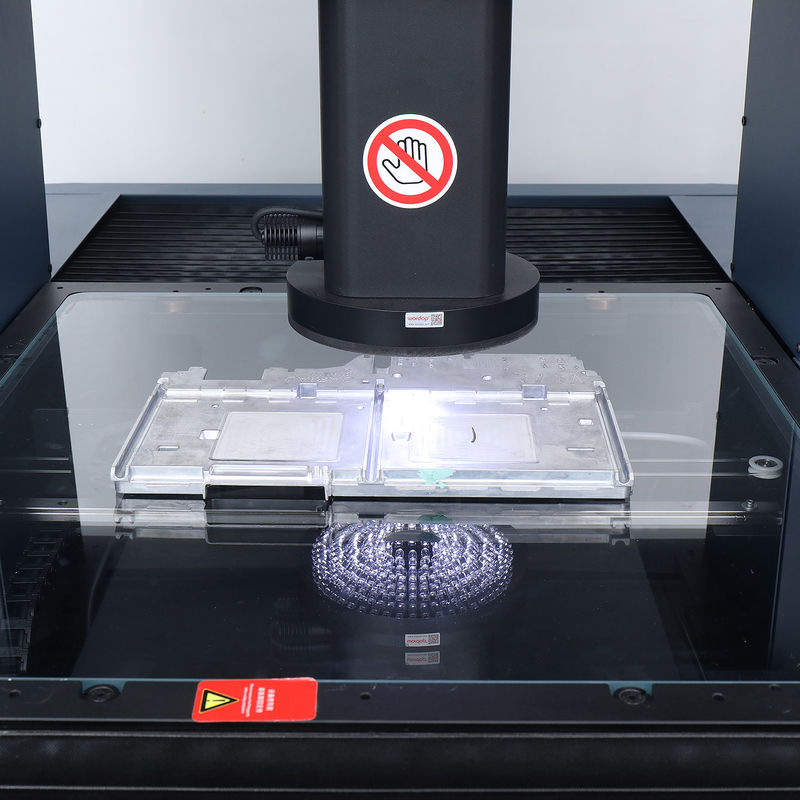

Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light



Detection Accuracy*2

X/Y-axis

(1.8+L/200)µm

(2.0+L/200)µm

(2.2+L/200)µm

(2.4+L/200)µm

Z-axis

(5.0+L/200)µm



Maximum Speed

XY(mm/s)

300 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×850×1650

1350×950×1650

1550×1050×1650

1650×1250×1650

Instrument weight (kg)

620kg

710kg

810kg

920kg

Load-bearing (kg)

25kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%


*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
