QL 120 Quick Vision Machine
,Optical Image Measuring Comparator
,Optical Image Measuring Quick Vision Machine
-
External Dimensions (Length*Width*Height))842mm*200mm*415mm
-
Instrument Weight32kg
-
Measurement Range116mm*116mm（with Four R Angles）
-
Measurement Depth Of Field16mm
-
Measurement Accuracy±4.5μm
-
Repeatability±2μm
-
Instrument Power50W
-
Operating Temperature0°~+45°
-
Enclosure Protection GradeIP64
-
Processing CompensationSupport
-
Operating Humidity85%RH Or Below (non-condensing)
-
MeasurementGQuick CAD++Measurement Software
-
Input Voltage/CurrentDC 24V 2.0A-3.75A
-
Place of OriginGuangong/China
-
Brand Namekoqia
-
CertificationCE
-
Model NumberQL 120
-
Minimum Order Quantity1 Sets
-
PriceCan be discussed
-
Packaging DetailsPlywood
-
Delivery Time30 work days
-
Payment TermsL/C,T/T
-
Supply Ability100 Sets/Month

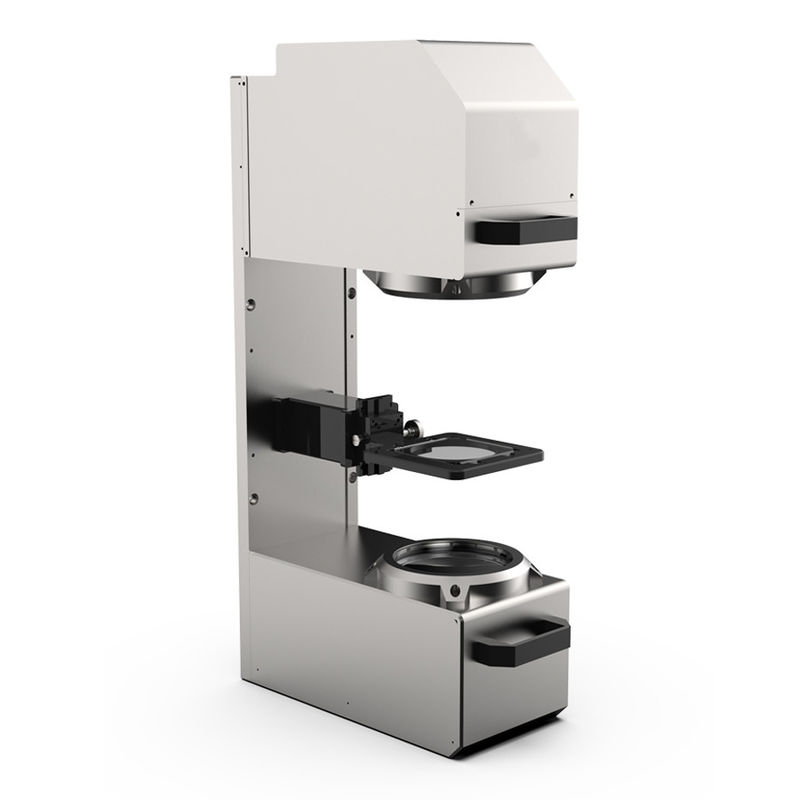

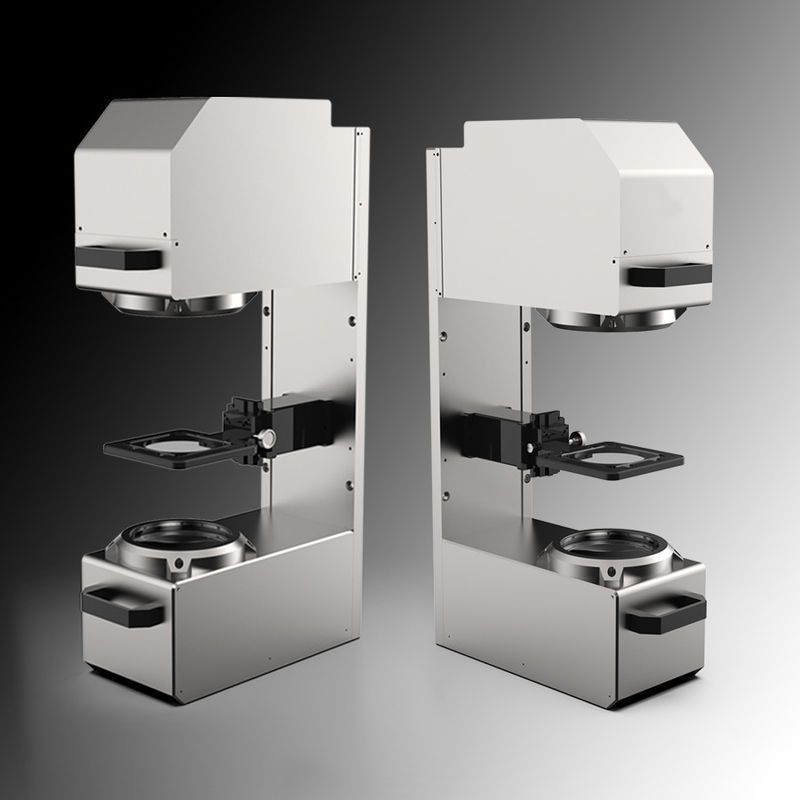

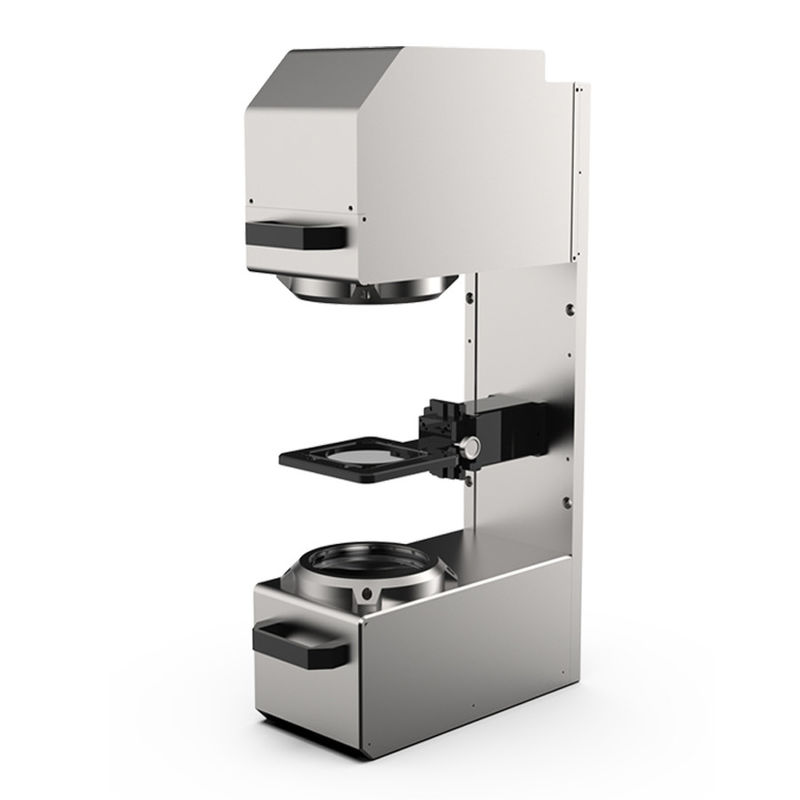

QL 120 Quick Vision Machine Optical Image Measuring Comparator
QL 120 Quick Vision Machine Optical Image Measuring Comparator
Application:
It is widely used in 3C, IT, photovoltaic, new energy battery, medical, automotive, semiconductor, PCB, precision machining, mold, die-cutting, stamping, rubber and plastic and other fields, providing comprehensive dimensional measurement and quality control solutions for all kinds of enterprises and institutions.
Everyone is a measurement expert
One-click measurement, simplified 丨Linear motor for faster speed丨Intelligent hardware for precision
|

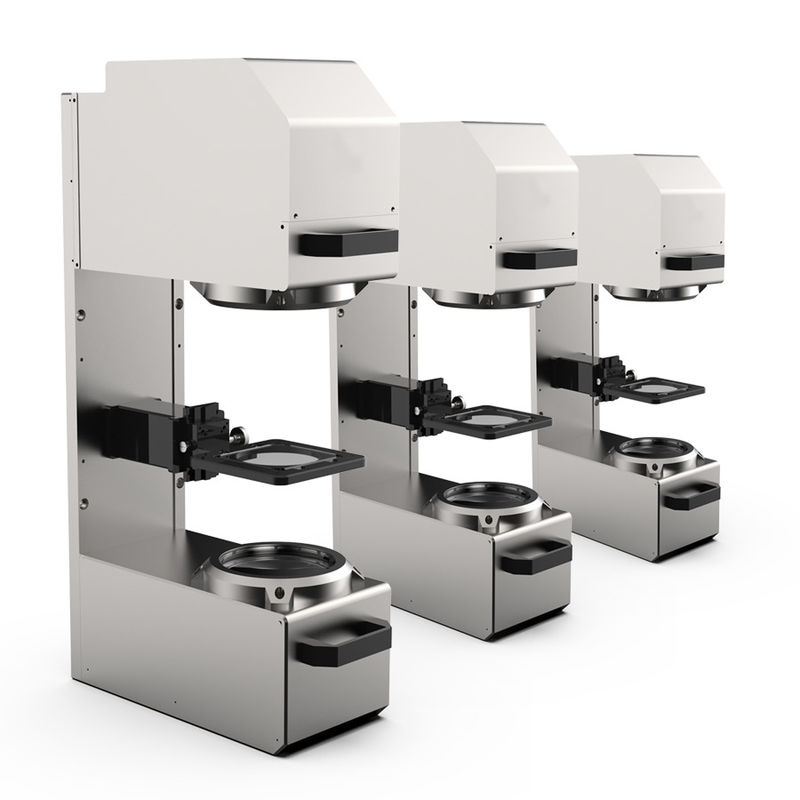

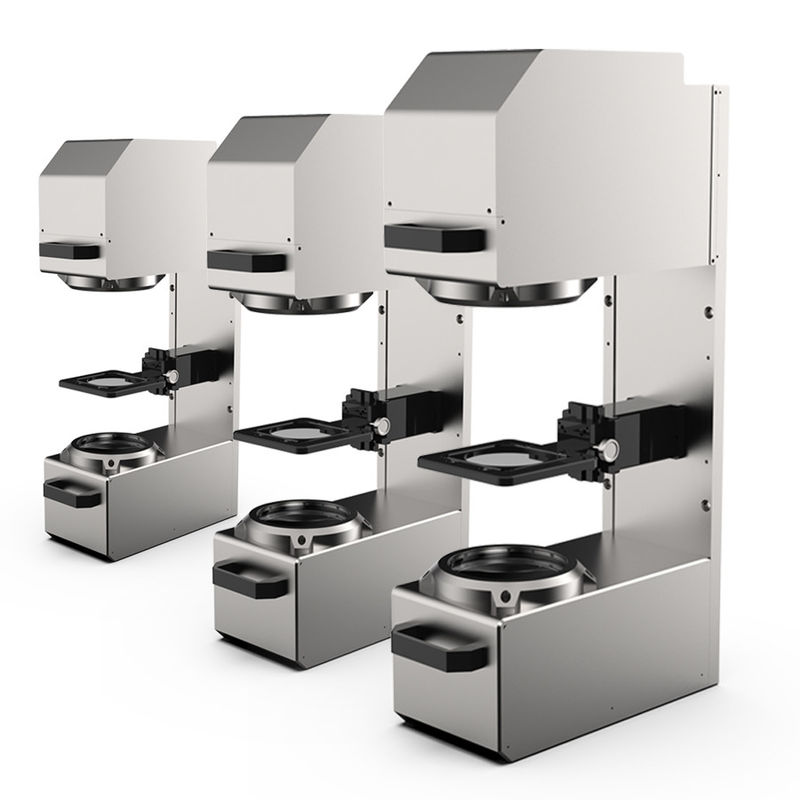

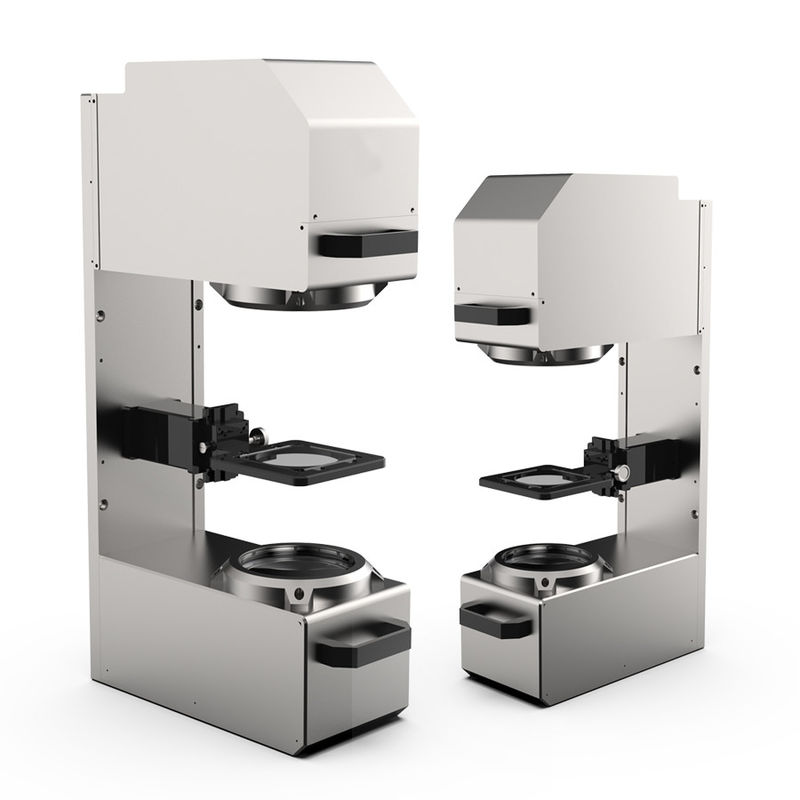

Product Appearance |
|
|
|
|
Product Model |
QL 36 |
QL 65 |
QL 120 |
|
External Dimensions (Length*Width*Height)) |
190mm*120mm*475mm |
677mm*120mm*216mm |
842mm*200mm*415mm |
|
Instrument Weight |
6.5kg |
12kg |
32kg |
|
Measurement Range |
28*23mm |
Φ70mm |
116mm*116mm(with four R angles) |
|
Measurement Depth of Field |
8mm |
16mm |
16mm |
|
Measurement Accuracy |
±2μm |
±4.5μm |
±4.5μm |
|
Repeatability |
±1μm |
±2μm |
±2μm |
|
Camera |
High Frame Rate Multi-Pixel Large Target |
||
|
Optical Lens |
Low Distortion Large Depth of Field |
||
|
Lighting System |
Green, High Uniformity Telecentric Parallel Light Source |
||
|
Expansion |
Optional with Horizontal/Vertical Stage and Ring Light |
||
|
Processing Compensation |
Support |
||
|
Input Voltage/Current |
DC 24V 2.0A-3.75A |
||
|
Instrument Power |
50W |
||
|
Enclosure Protection Grade |
IP64 |
||
|
Operating Temperature |
0°~+45° |
||
|
Operating Humidity |
85%RH or below (non-condensing) |
||
|
Humidity Computer |
I7 Processor, 16GB Memory, 512GB Solid State Drive, Win10 Operating System, Integrated Display All-in-One |
||
|
Measurement |
GQuick CAD++Measurement Software |
||
