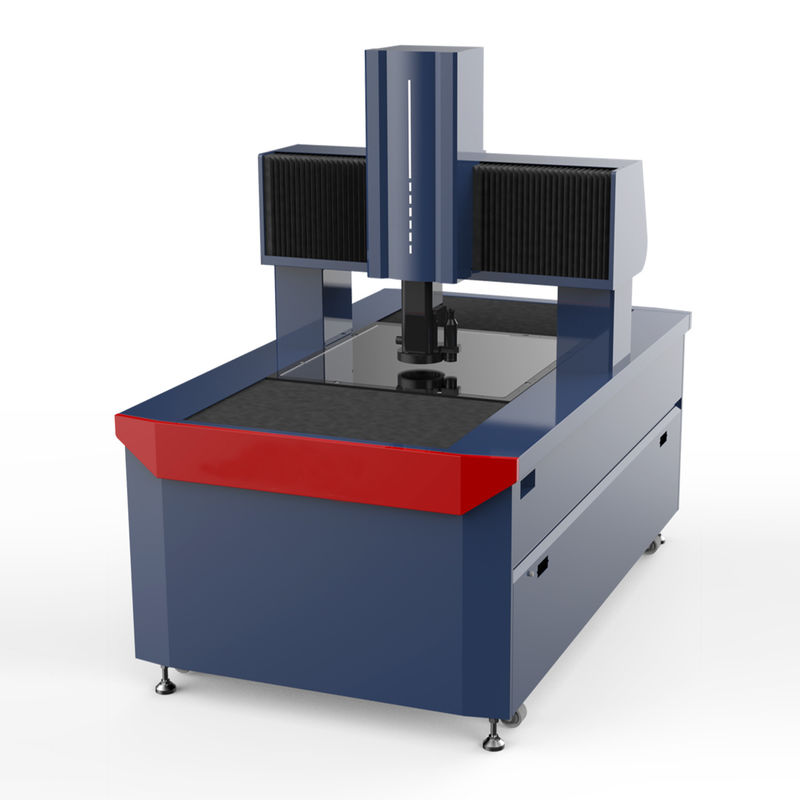

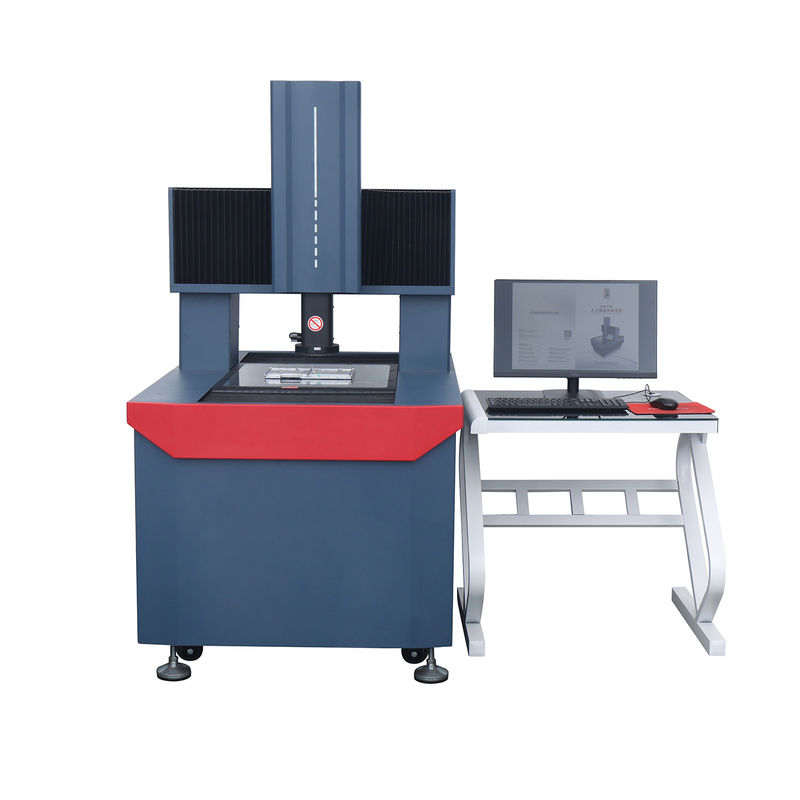

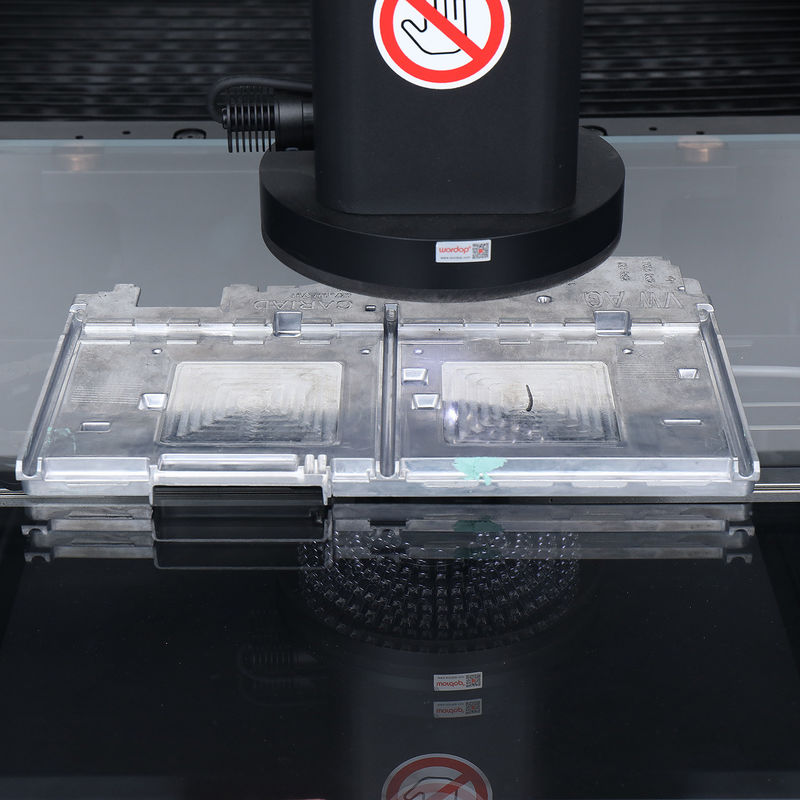

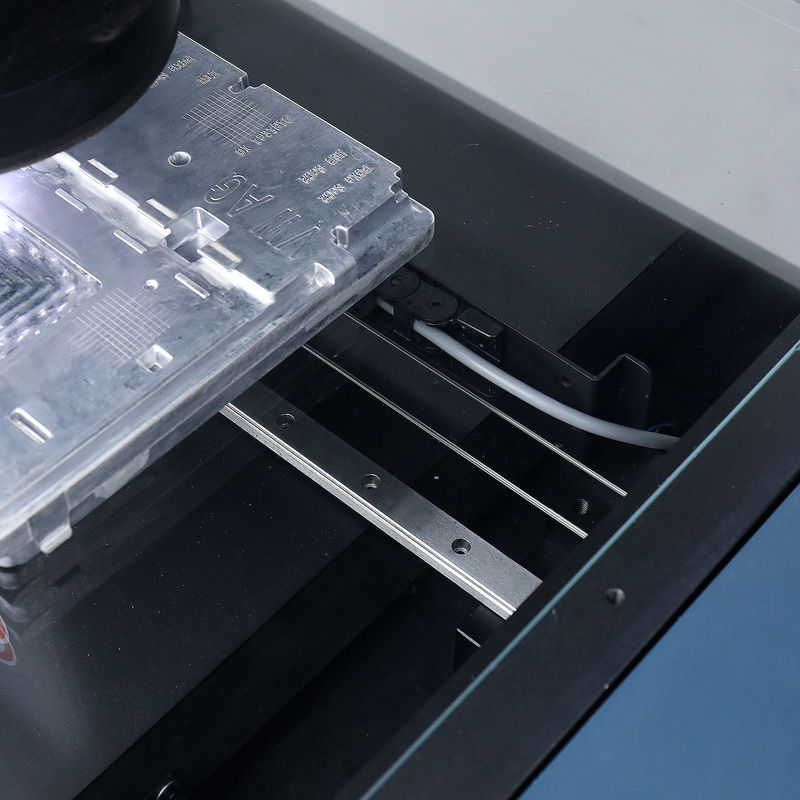

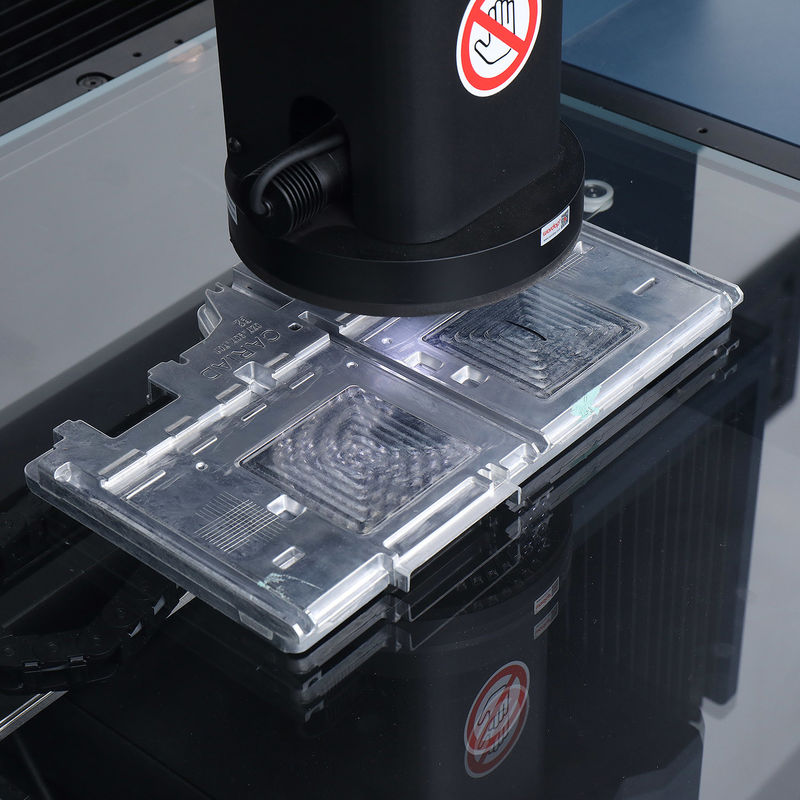

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

Products - Video Measuring Instrument
  • Highlight

    3D Video Measuring System

    ,

    Fixed Bridge Structure Video Measuring System

    ,

    Linear Motor Video Measurement System

  • Travel
    400x400x200mm
  • Structure
    Fixed-bridge
  • Base Material
    Marble
  • Resolution
    0.1µm
  • Lens
    13.3X
  • Dimensions(mm)
    1350×950×1650
  • Instrument Weight (kg)
    720kg
  • Load-bearing (kg)
    25kg
  • Power Supply
    1600W
  • Place of Origin
    Guangong/China
  • Brand Name
    koqia
  • Certification
    CE
  • Model Number
    KV-Max-442
  • Minimum Order Quantity
    1 Sets
  • Price
    Can be discussed
  • Packaging Details
    Plywood
  • Delivery Time
    30 work days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    100 Sets/Month

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

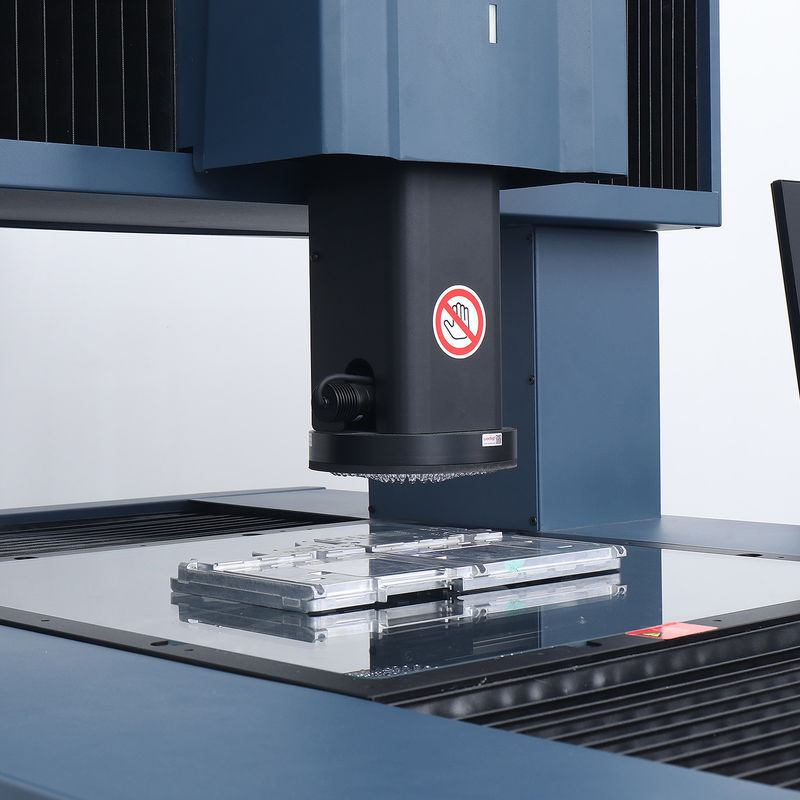

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

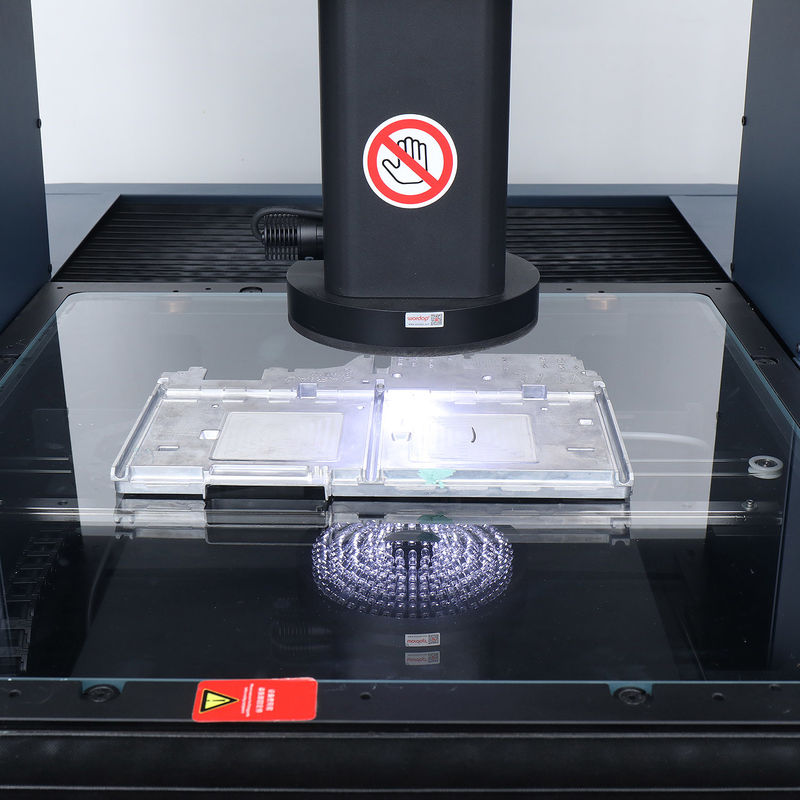

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

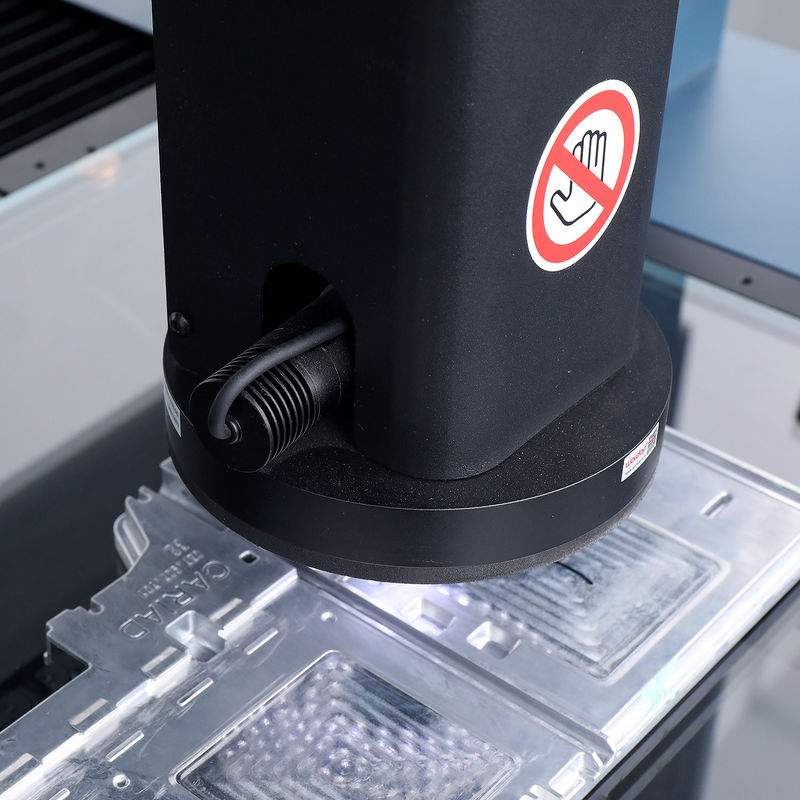

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

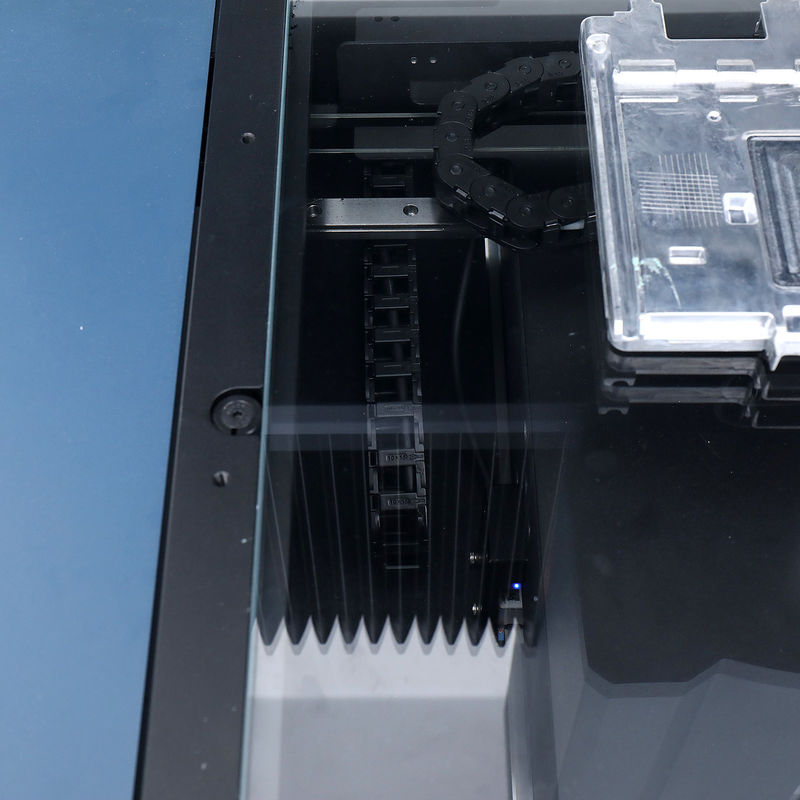

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

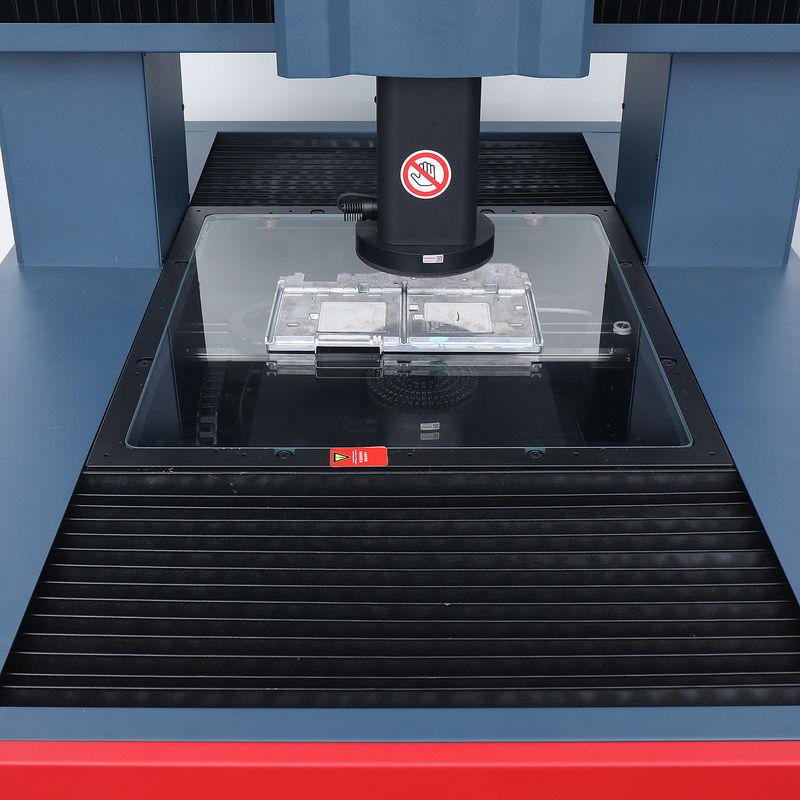

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

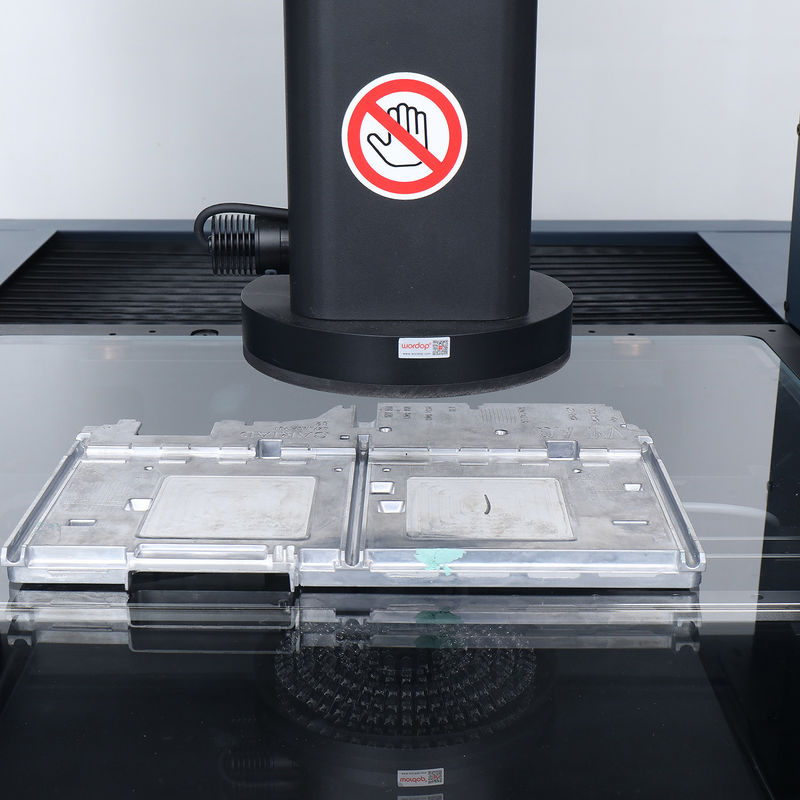

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

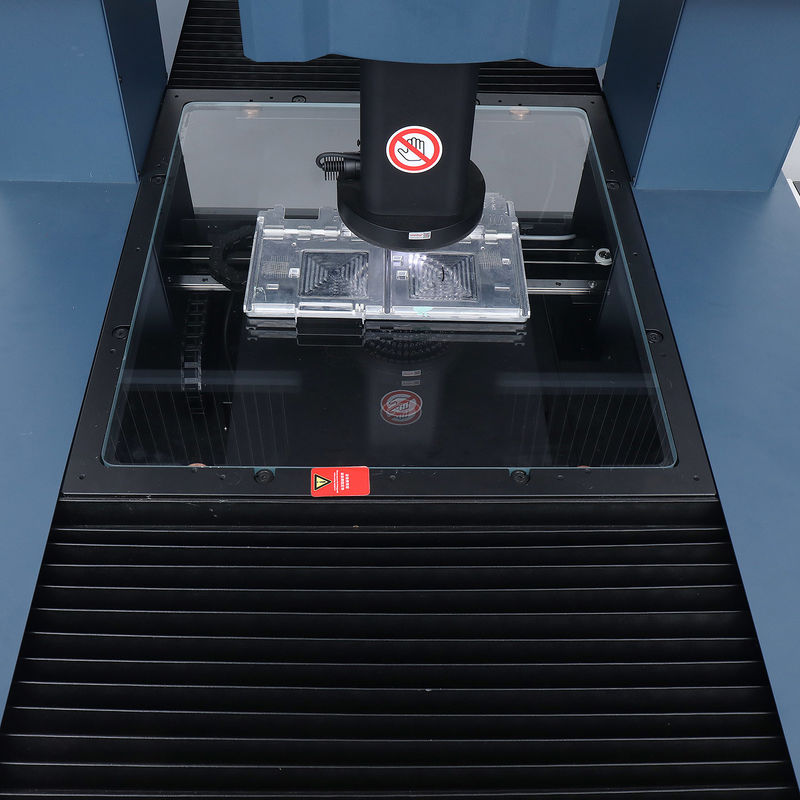

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure

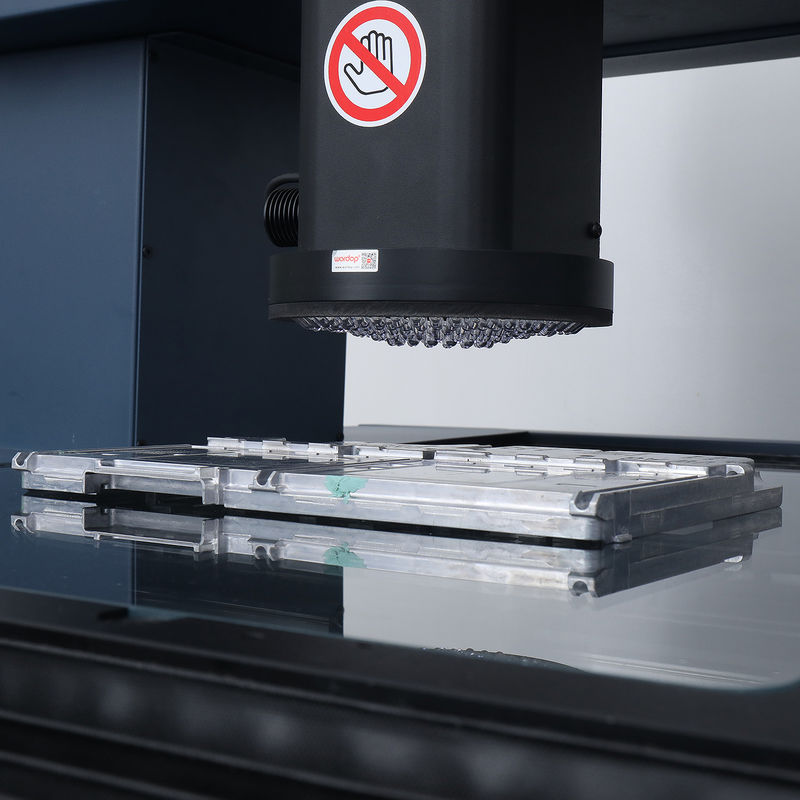

  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
  • KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure
Get Price Contact Now

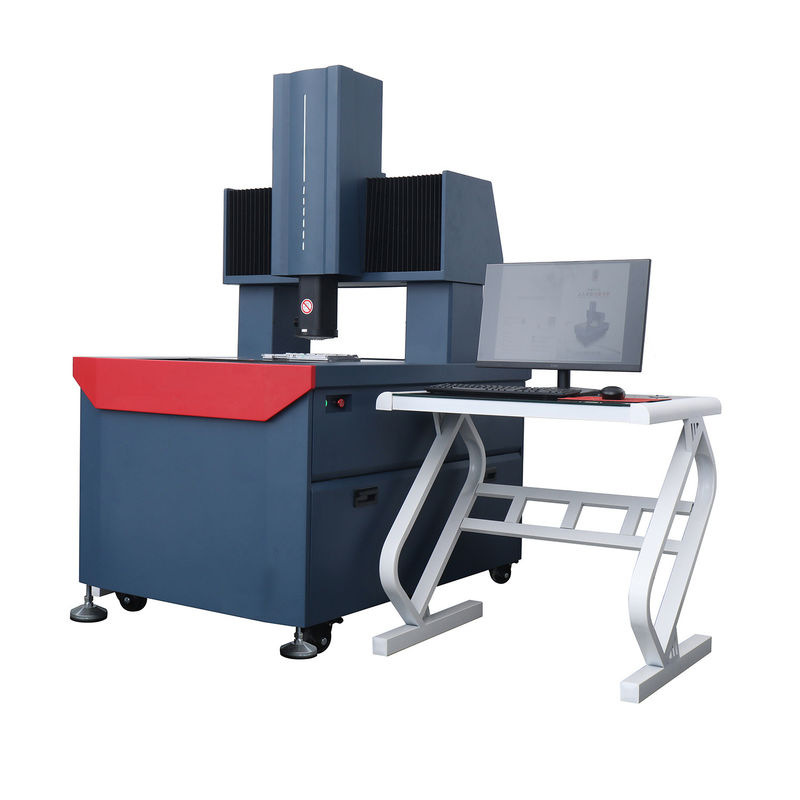

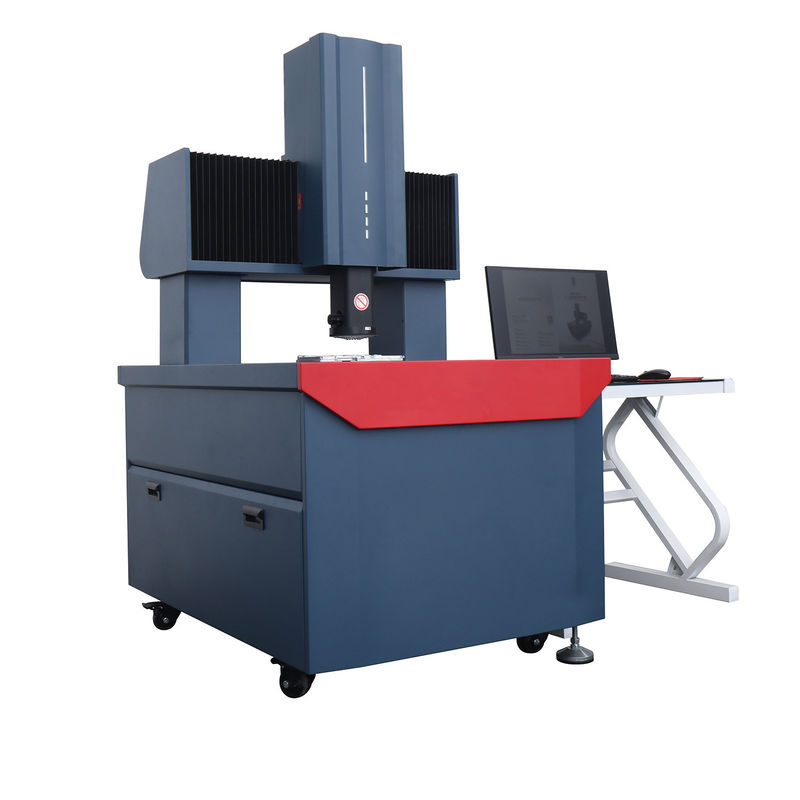

KV-Max-442 Linear Motor Fixed-bridge High-end Automatic 3D Video Measuring Instrument

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 0

Product Introduction:

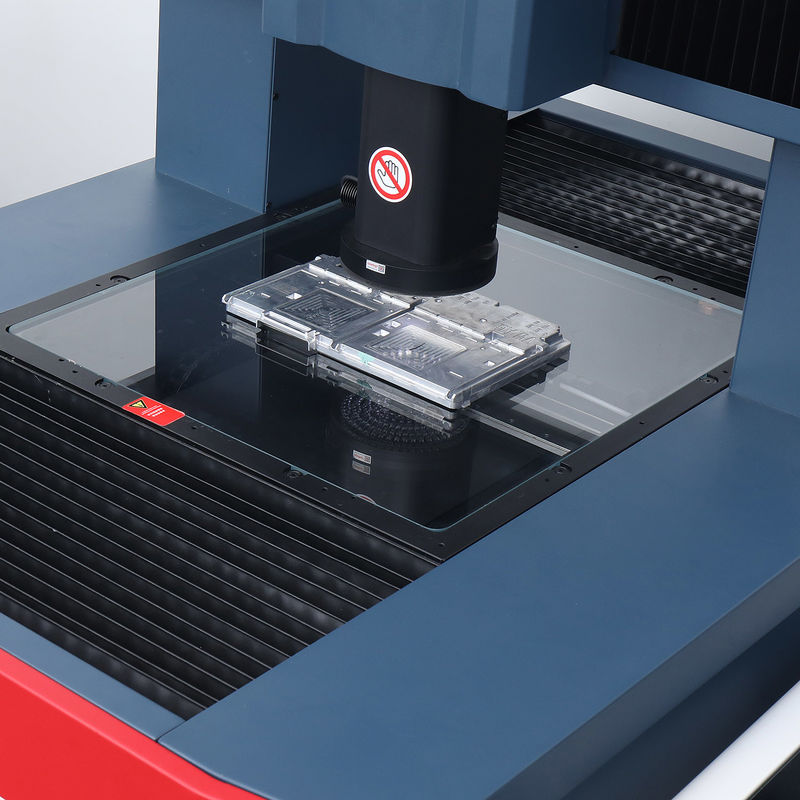

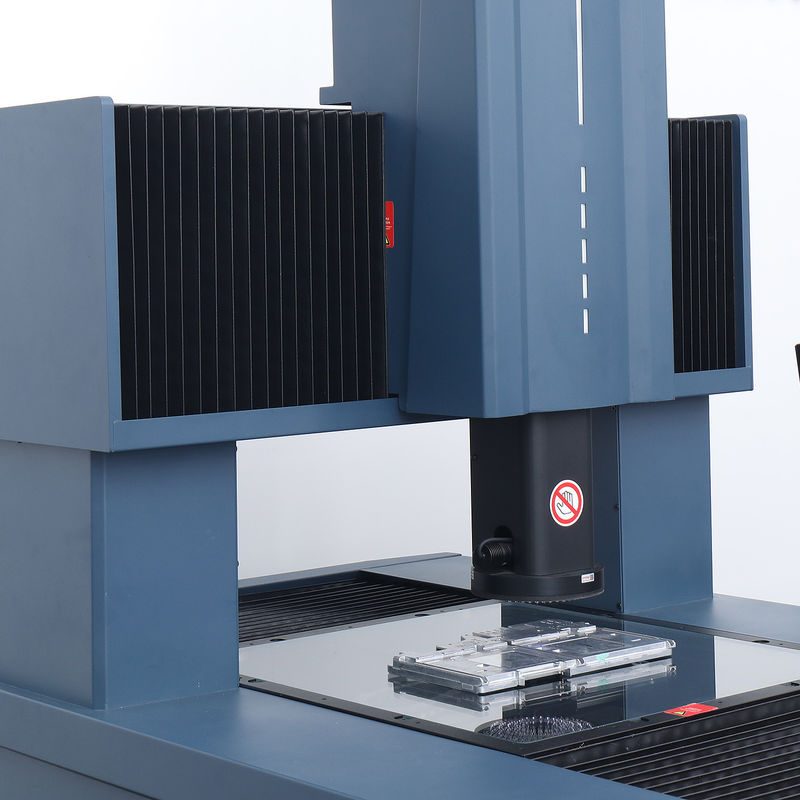

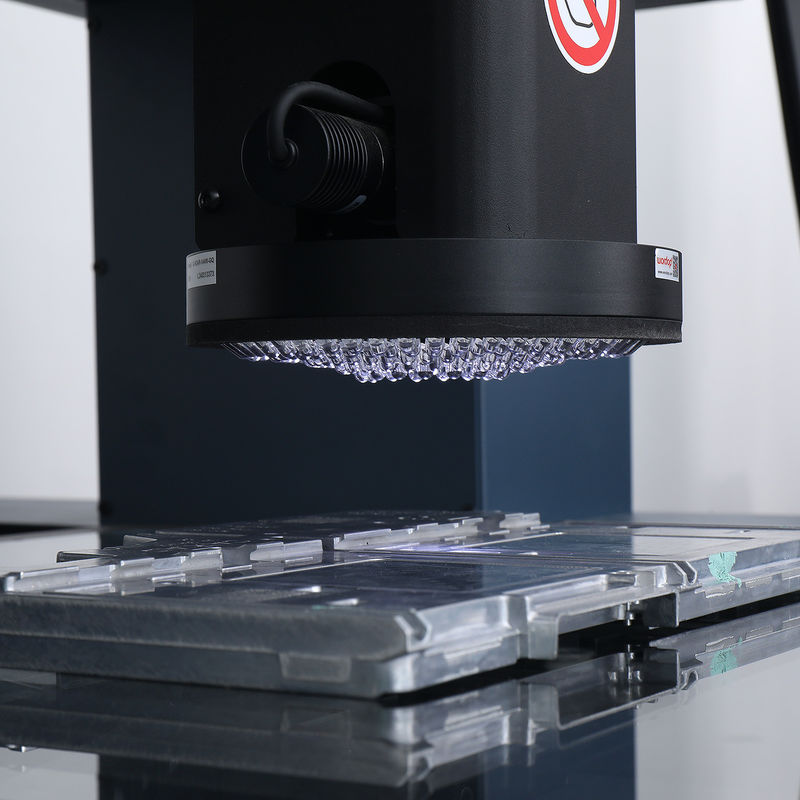

【 KV-Max 】Series direct drive fixed bridge automatic measuring instrument, linear motor moving stator non-contact high-speed motion control, frictionless motion smooth and smooth, can achieve high-precision motion control, and low noise, no wear, longer service life


KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 1

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 2

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 3

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 4

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 5

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 6

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 7

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 8

Basic Functions:

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 9

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 10

Measurement Function:

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 11

Fields of Application:

KV-Max-442 Linear Motor 3D Video Measuring System Automatic Fixed Bridge Structure 12


Specifications:

Model

KV-Max-332

KV-Max-442

KV-Max-552

KV-Max-662





Travel

X(mm)

300

400

500

600

Y(mm)

300

400

500

600

Z(mm)

200

200

200

200

Structure

Fixed-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.1µm

Lens

13.3X

Magnifier Rate*1

16X-232X(0.6X-8.0X)





Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light



Detection Accuracy*2

X/Y-axis

(1.2+L/200)µm

(1.4+L/200)µm

(1.6+L/200)µm

(1.8+L/200)µm

Z-axis

(3.0+L/200)µm



Maximum Speed

XY(mm/s)

500 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×850×1650

1350×950×1650

1550×1050×1650

1650×1250×1650

Instrument weight (kg)

630kg

720kg

820kg

930kg

Load-bearing (kg)

25kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%


*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
