KV-Pro-442 Automatic Image Measuring Machine Linear Motor Fixed Bridge
-
Highlight
Automatic Image Measuring Machine
,Linear Motor Image Measuring Machine
,Fixed Bridge Image Measuring Machine
-
Travel400x400x200mm
-
StructureFixed-bridge
-
Base MaterialMarble
-
Resolution0.1µm
-
Lens8.3X
-
Dimensions(mm)1350×950×1650
-
Instrument Weight (kg)720kg
-
Load-bearing (kg)25kg
-
Power Supply1600W
-
Place of OriginGuangong/China
-
Brand Namekoqia
-
CertificationCE
-
Model NumberKV-Pro-442
-
Minimum Order Quantity1 Sets
-
PriceCan be discussed
-
Packaging DetailsPlywood
-
Delivery Time30 work days
-
Payment TermsL/C,T/T
-
Supply Ability100 Sets/Month

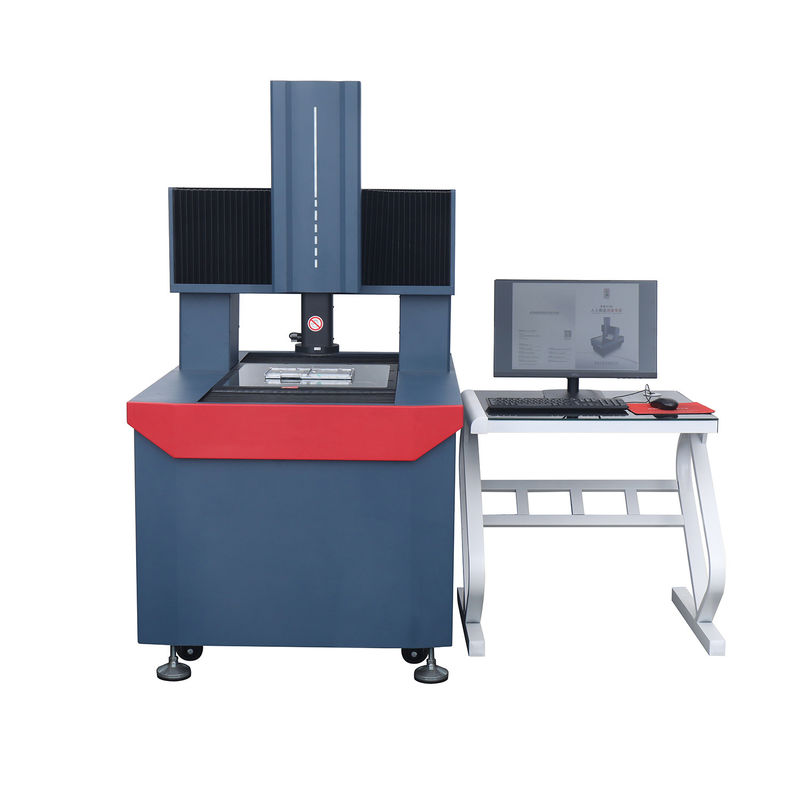

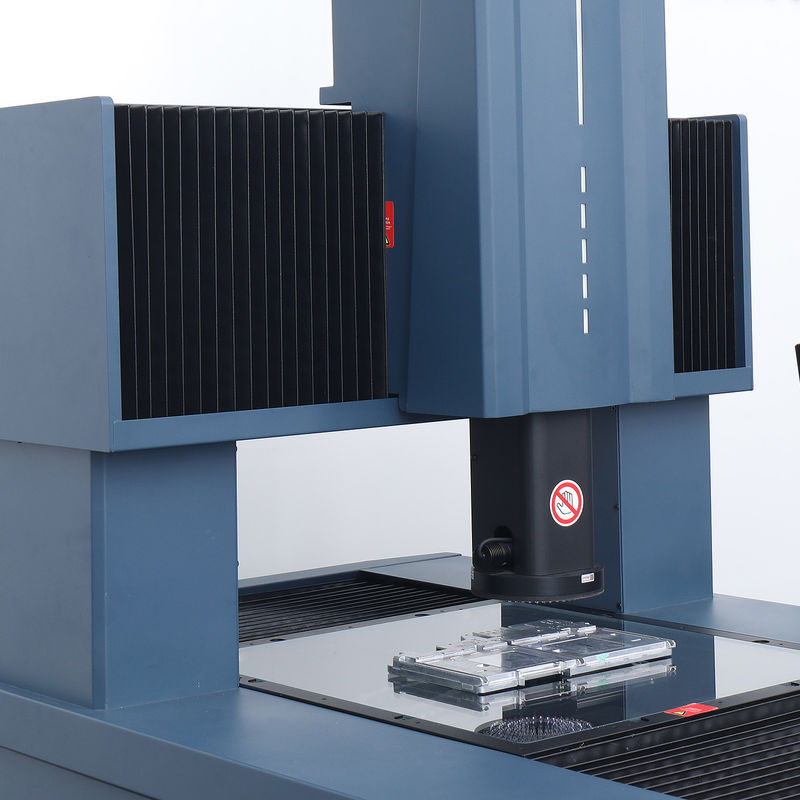

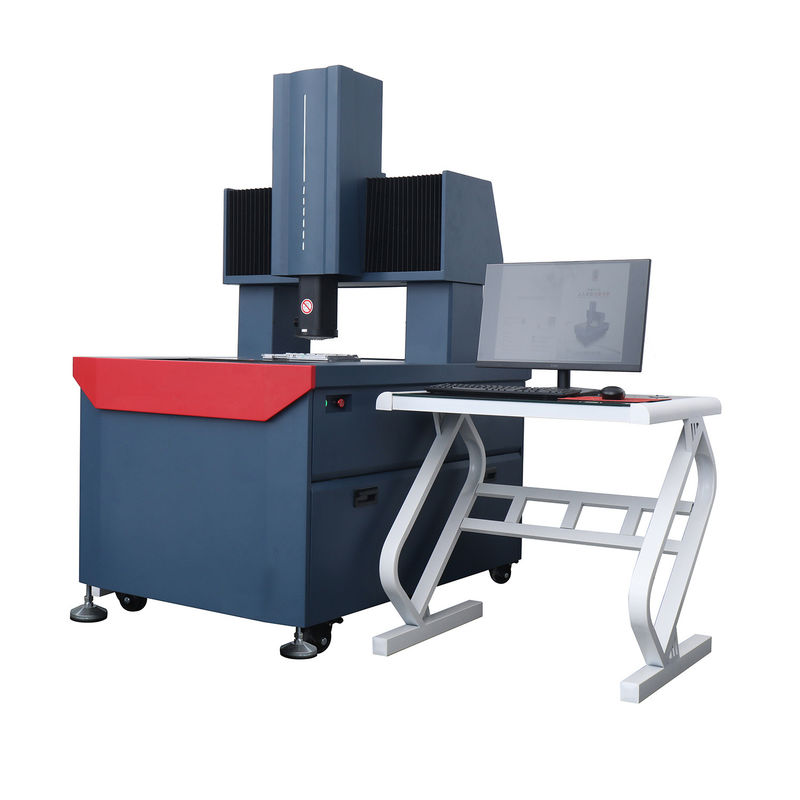

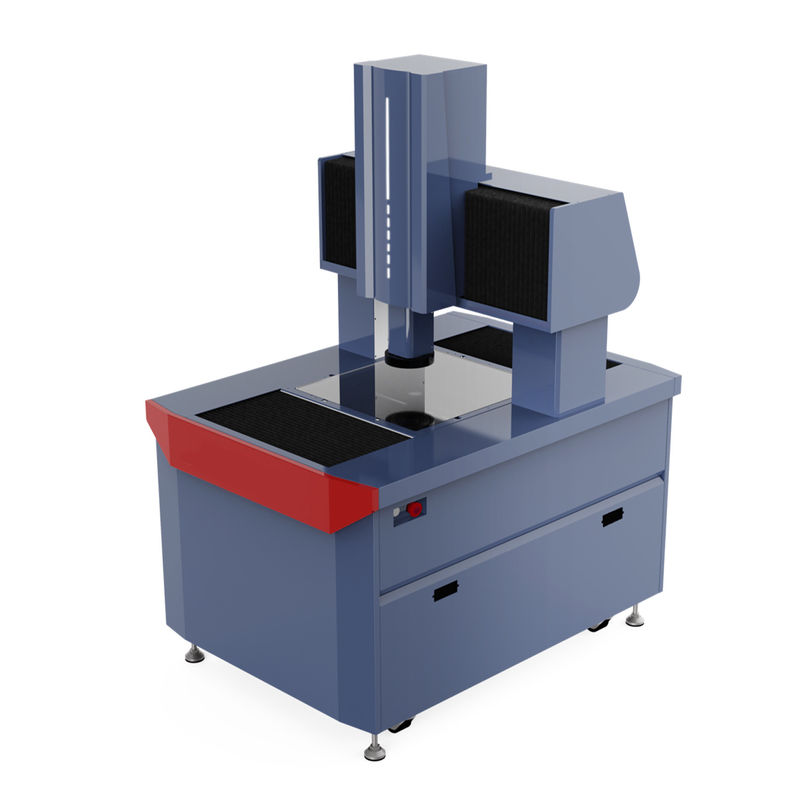

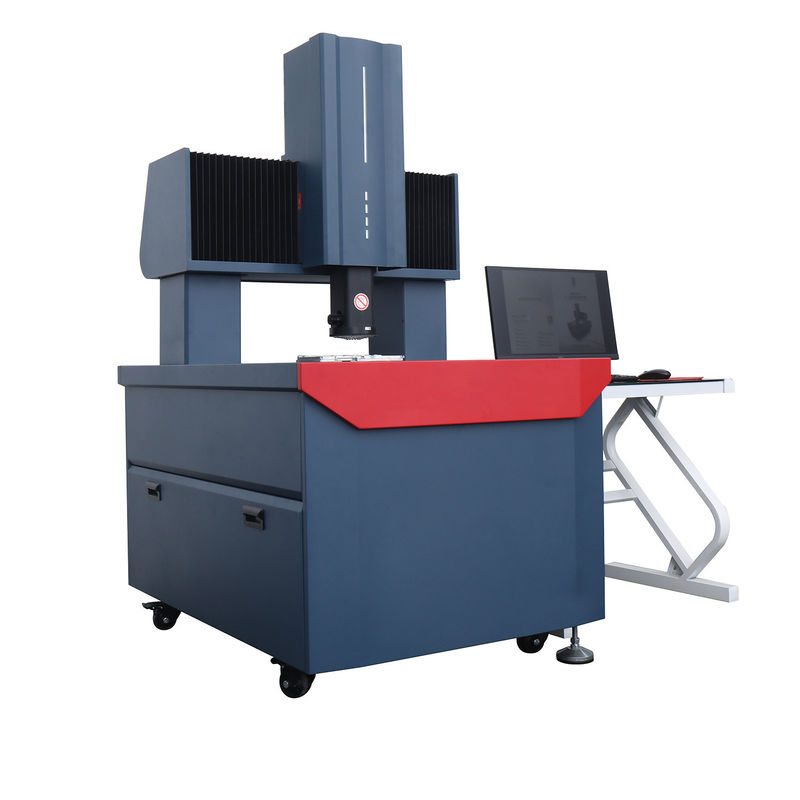

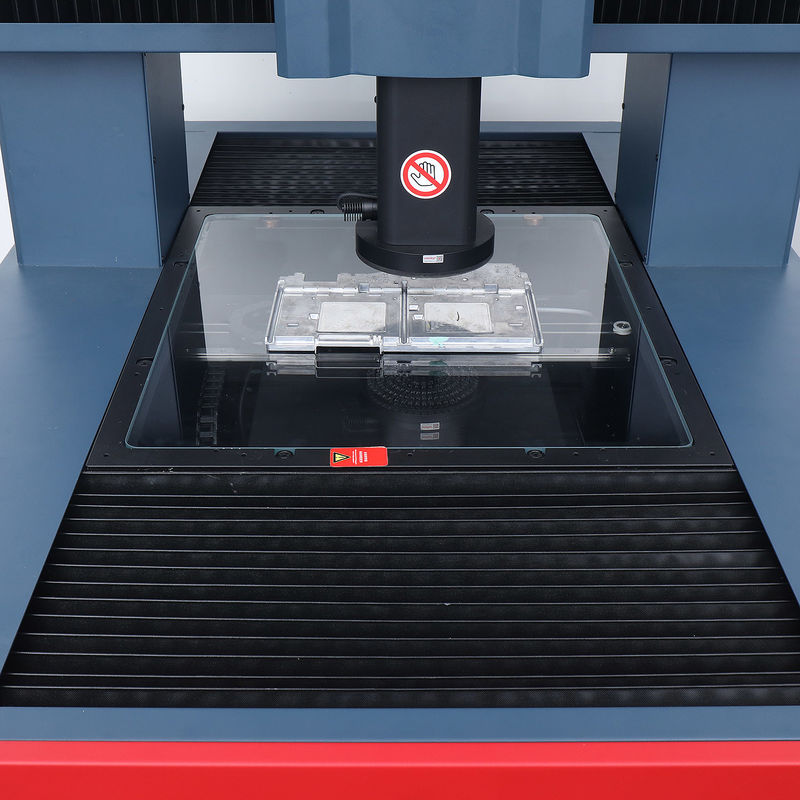

KV-Pro-442 Automatic Image Measuring Machine Linear Motor Fixed Bridge
KV-Pro-442 Linear Motor Fixed-bridge Automatic Image Measuring Machine
Product Introduction:

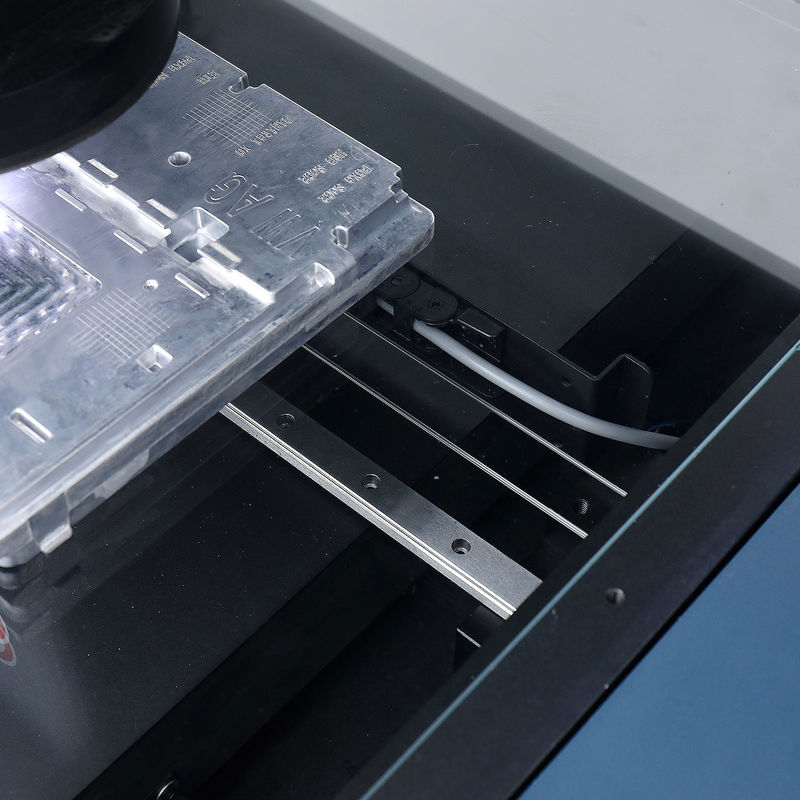

【 KV-Pro 】Series direct drive fixed bridge automatic measuring instrument, linear motor moving stator non-contact high-speed motion control, frictionless motion smooth and smooth, can achieve high-precision motion control, and low noise, no wear, longer service life.
Basic Functions:
Measurement Function:
Fields of Application:
Specifications:
|
Model |
KV-Pro-332 |
KV-Pro-442 |
KV-Pro-552 |
KV-Pro-662 |
|
|
Travel |
X(mm) |
300 |
400 |
500 |
600 |
|
Y(mm) |
300 |
400 |
500 |
600 |
|
|
Z(mm) |
200 |
200 |
200 |
200 |
|
|
Structure |
Fixed-bridge |
||||
|
Base Material |
Marble |
||||
|
Monitor |
24-inch LCD Monitor |
||||
|
Image Sensors |
1/2" digital CCD, high pixels, global color, large field of view |
||||
|
Resolution |
0.1µm |
||||
|
Lens |
8.3X |
||||
|
Magnifier Rate*1 |
18X-165X(0.6X-5.0X) |
||||
|

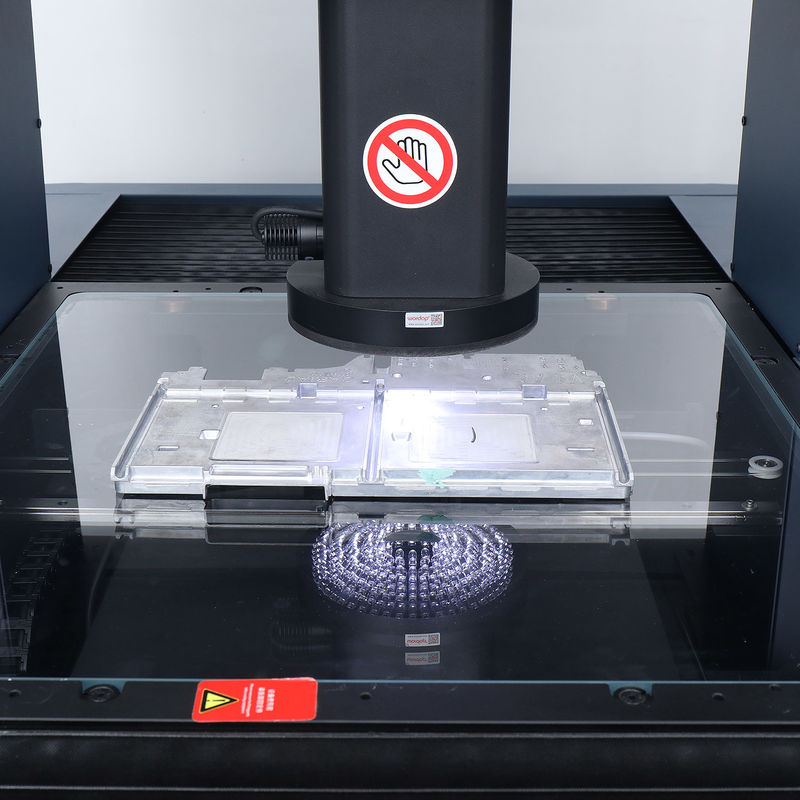

Lighting system |
Transmitted Light |
LED Telecentric Transmission Ilumination |
|||
|

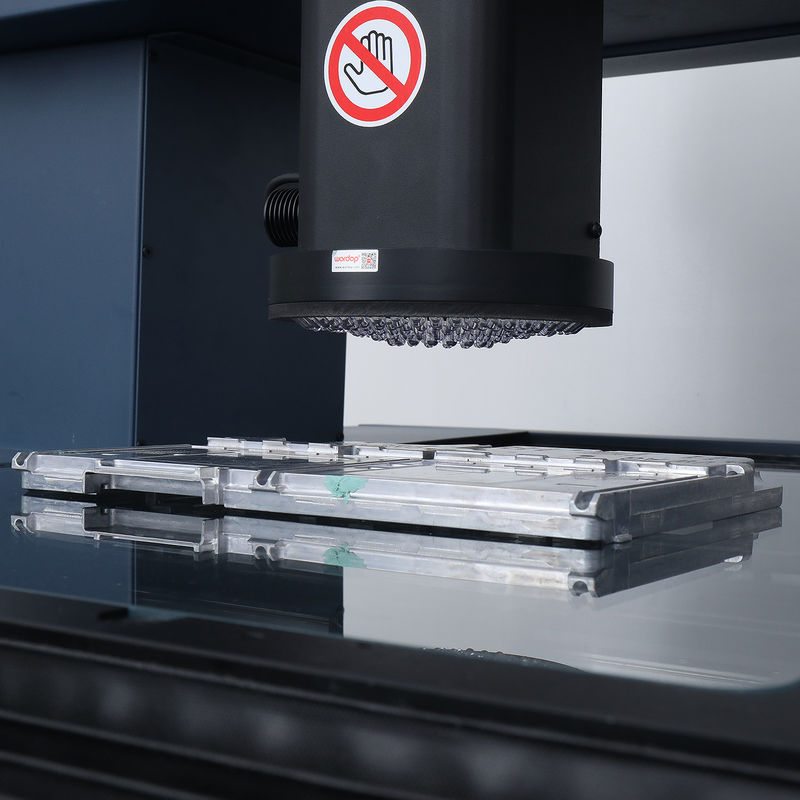

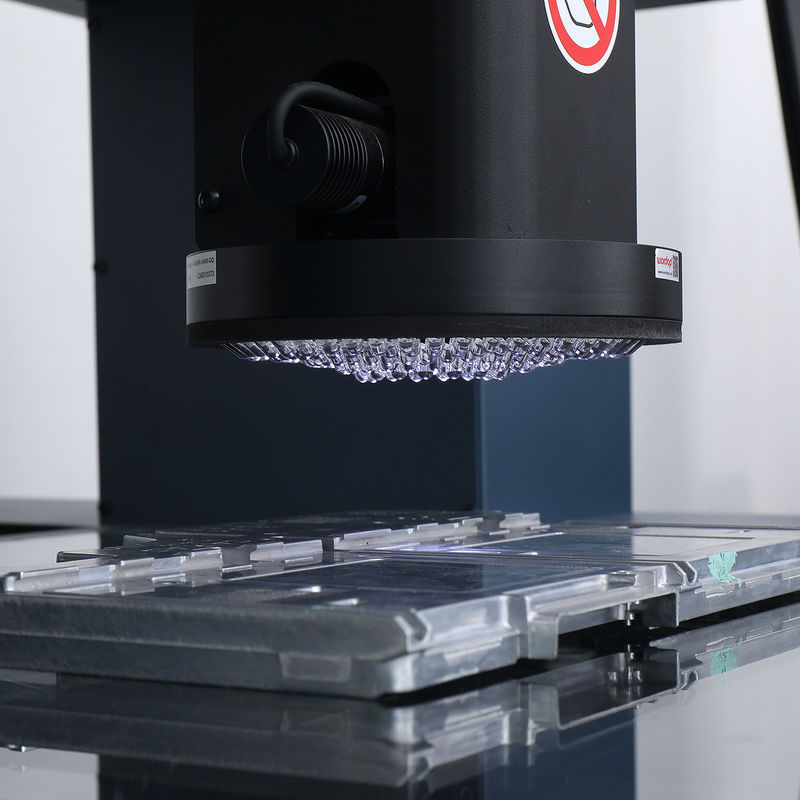

Surface Light |
5 Rings and 8 Zone Split light |
||||
|
Coaxial Light |
Optional, LED light |
||||
|
Detection Accuracy*2 |
X/Y-axis |
(1.6+L/200)µm |
(1.8+L/200)µm |
(2.0+L/200)µm |
(2.2+L/200)µm |
|
Z-axis |
(5.0+L/200)µm |
||||
|
Maximum Speed |
XY(mm/s) |
500 mm/s |
|||
|
Z(mm/s) |
100 mm/s |
||||
|
Dimensions(mm) |
1150×850×1650 |
1350×950×1650 |
1550×1050×1650 |
1650×1250×1650 |
|
|
Instrument weight (kg) |
630kg |
720kg |
820kg |
930kg |
|
|
Load-bearing (kg) |
25kg |
||||
|
Power Supply |
1600W |
||||
|
Sensor Configuration |
Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe; |
||||
|
Motion Control |
Servo Control System |
||||
|
Measurement Software |
GQuick Series |
||||
|
Operating Voltage |
AC 220V,50/60Hz or others |
||||
|
Working Environment |
Temperature 20°C ±3°C, humidity 35~75% |
||||
*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
Our products are sold all over the world, you can rest assured.
