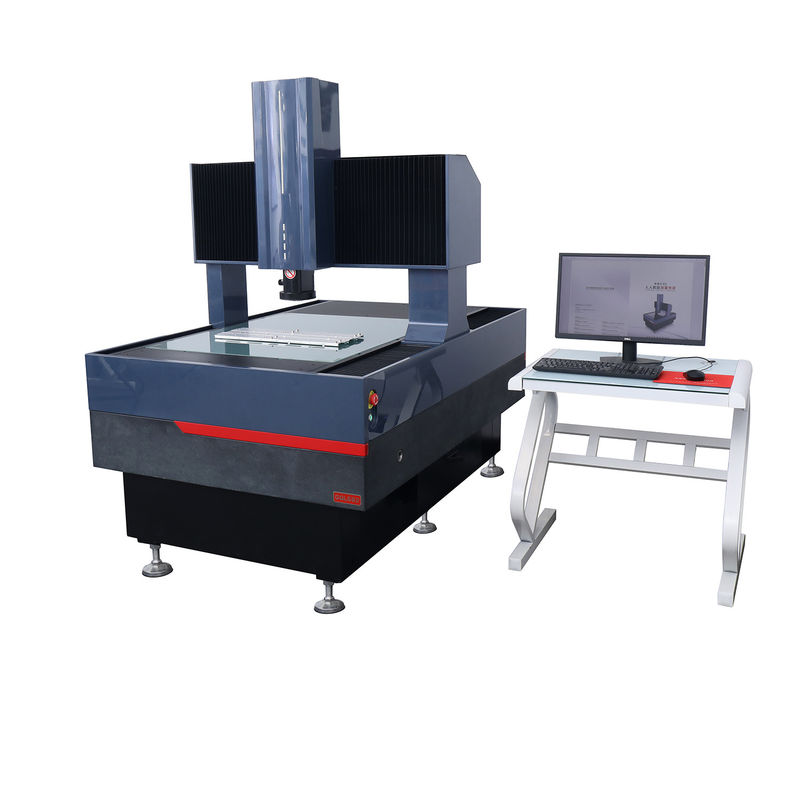

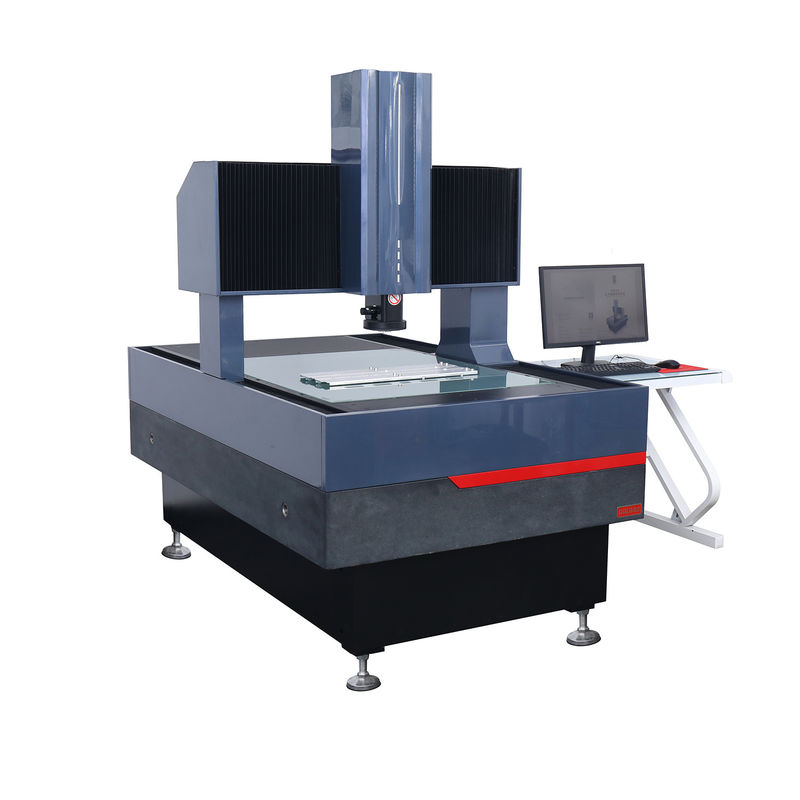

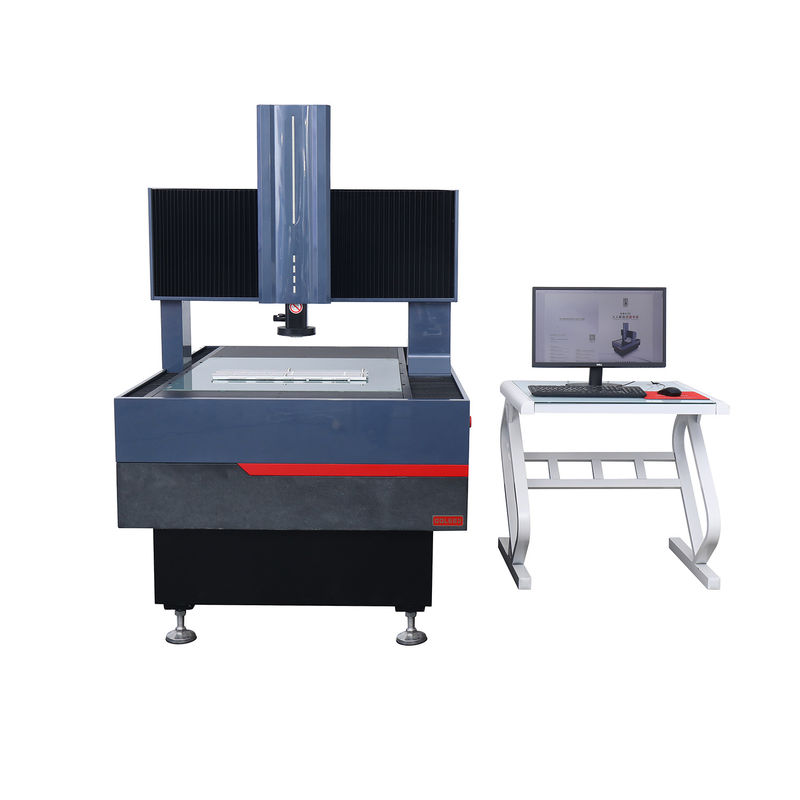

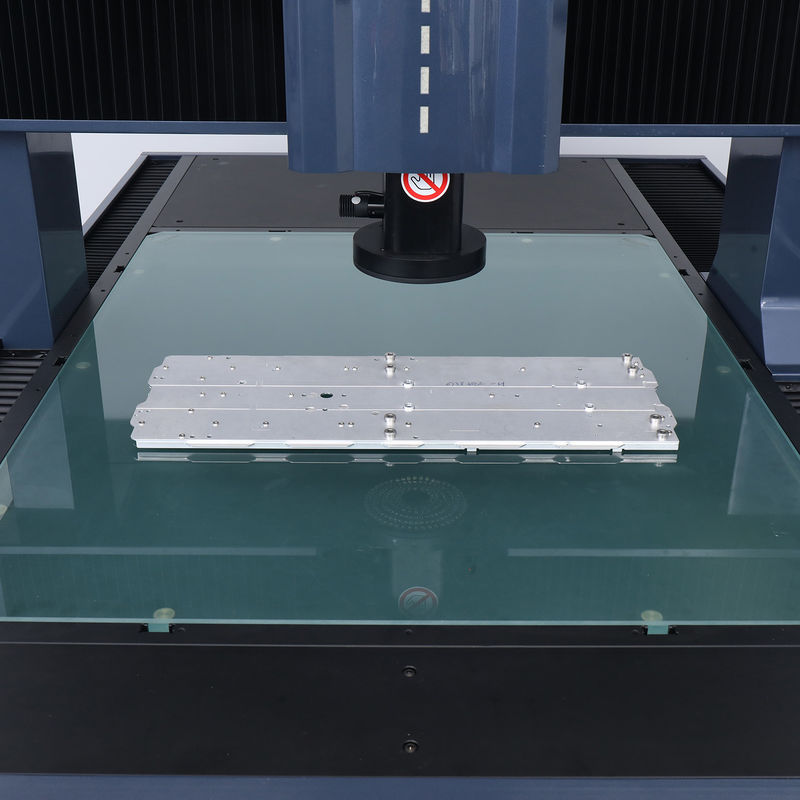

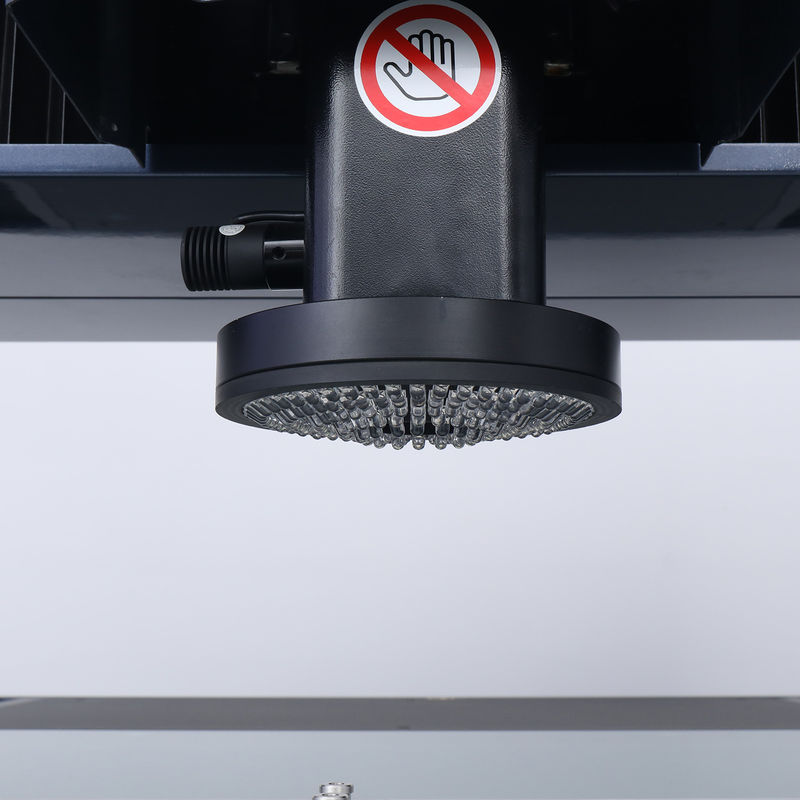

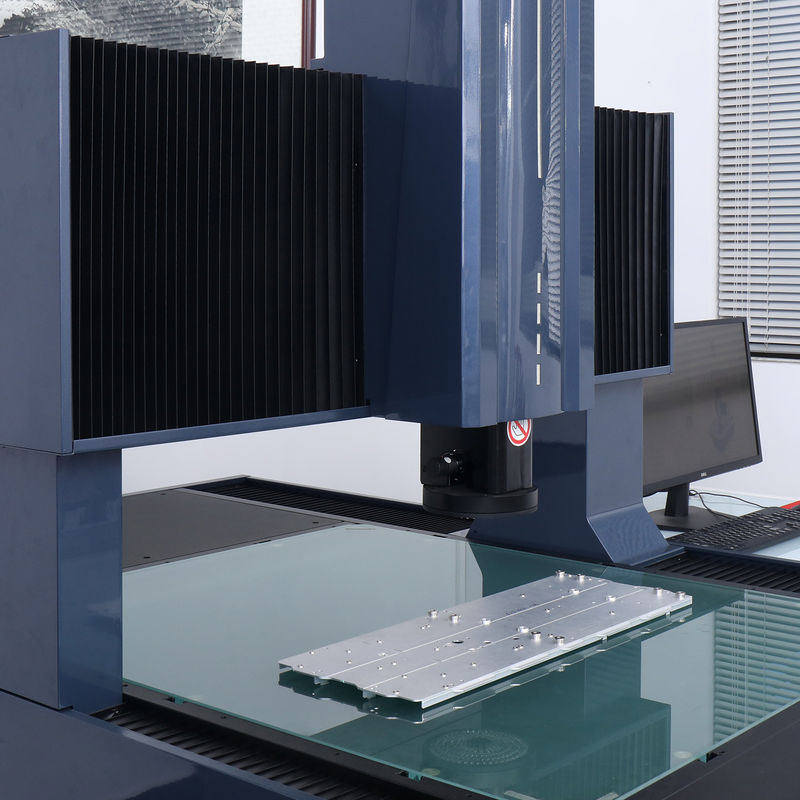

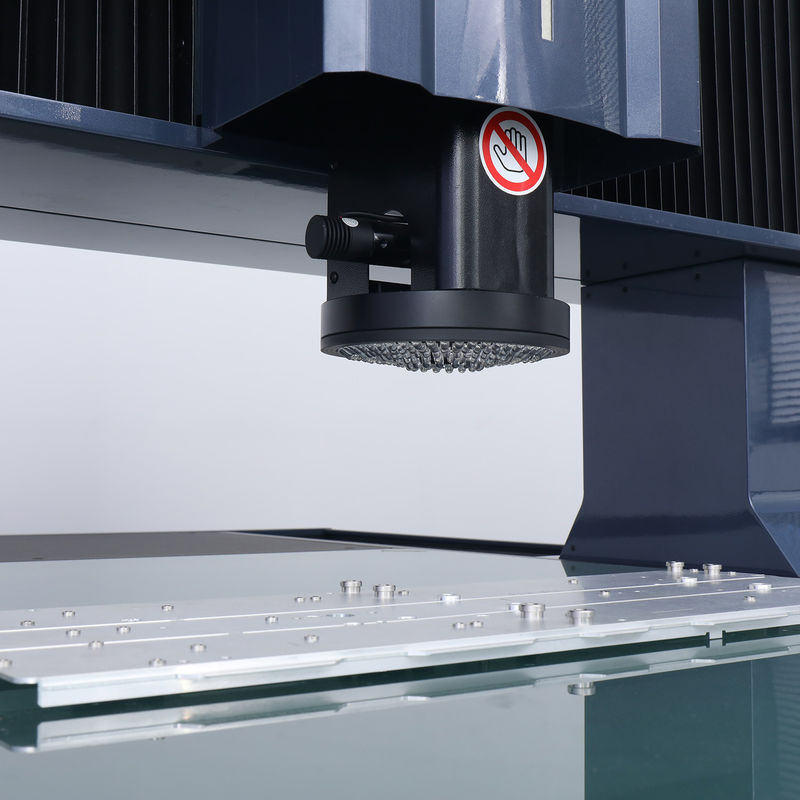

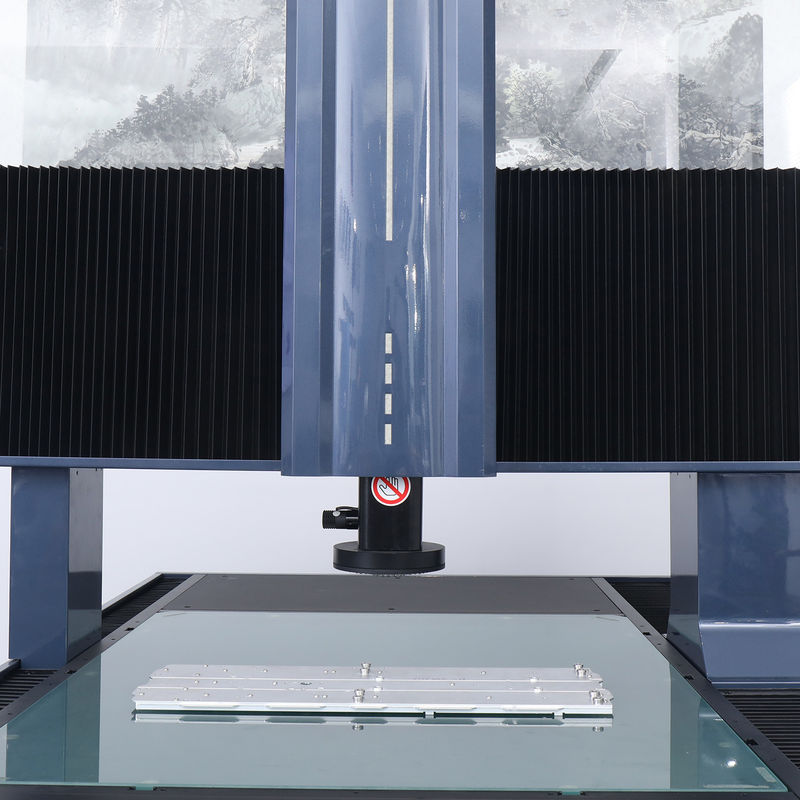

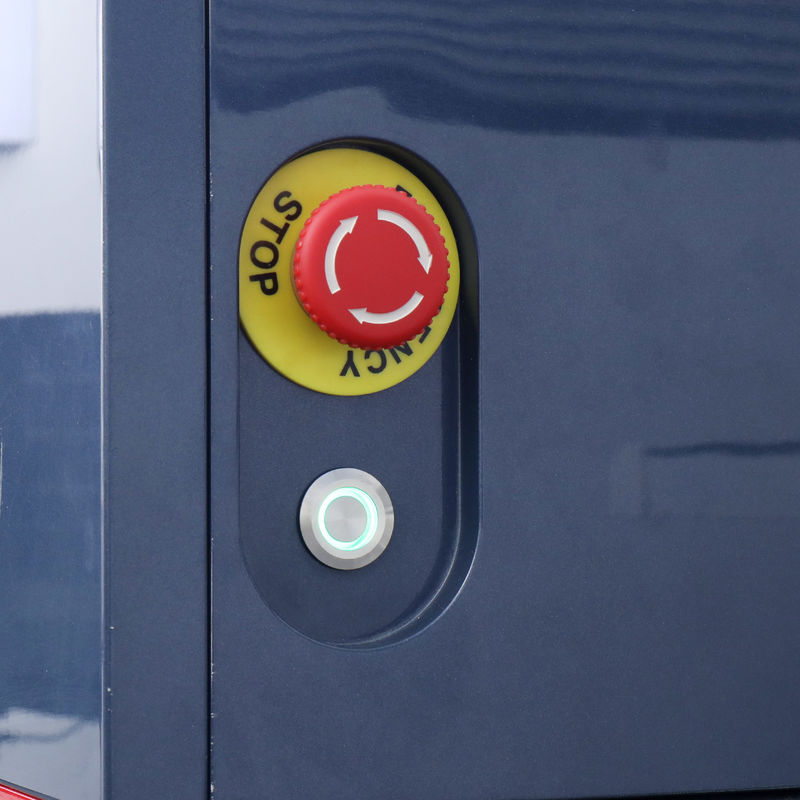

KV-Plus-682 Linear Motor Moving-bridge High-end Automatic Vision Measuring Machine

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 0

Product Introduction:

【 KV-Plus 】Series with the large size of the platform and the movable bridge structure, it can achieve efficient and accurate measurement of large quantities of workpieces; It is suitable for the detection and quality control of precision parts, and has been widely used in automobile, machinery, electronics, hardware, plastics and other industries.



Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 1

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 2

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 3

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 4

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 5

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 6

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 7

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 8

Basic Functions:

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 9

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 10

Measurement Function:

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 11

Fields of Application:

Linear Motor Moving Bridge Vision Measuring Machine Automatic High End KV-Plus-682 12



Specifications:

Model

KV-Plus-682

KV-Plus-8102

KV-Plus-10122

KV-Plus-12162

Travel

X(mm)

600

800

1000

1200

Y(mm)

800

1000

1200

1600

Z(mm)

200

200

200

200

Structure

Moving-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.1µm

Lens

8.3X

Magnifier Rate*1

18X-165X(0.6X~5.0X)

Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light

Detection Accuracy*2

X/Y-axis

(2.6+L/200)µm

(3.0+L/200)µm

(3.4+L/200)µm

(3.8+L/200)µm

Z-axis

(5.0+L/200)µm



Maximum Speed

XY(mm/s)

400 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×1850×1660

1450×2250×1660

1750×2250×1660

1900×2700×1660

Instrument weight (kg)

1630kg

2120kg

3020kg

4300kg

Load-bearing (kg)

30kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%

*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
