KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

Products - Vision Measuring Machine
  • Highlight

    Cantilever Vision Measurement System

    ,

    Servo Motor Vision Measurement System

    ,

    Cantilever Auto Vision Measuring System

  • Travel
    300x200x200mm
  • Structure
    Cantilever
  • Base Material
    Marble
  • Resolution
    0.5µm
  • Lens
    6.5X
  • Magnifier Rate*1
    30X-180X(0.7X-4.5X)
  • Dimensions(mm)
    750×850×1600
  • Instrument Weight (kg)
    380kg
  • Load-bearing (kg)
    25kg
  • Power Supply
    1600W
  • Place of Origin
    Guangong/China
  • Brand Name
    koqia
  • Certification
    CE
  • Model Number
    KV-Lite-322
  • Minimum Order Quantity
    1 Sets
  • Price
    Can be discussed
  • Packaging Details
    Plywood
  • Delivery Time
    30 work days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    100 Sets/Month

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

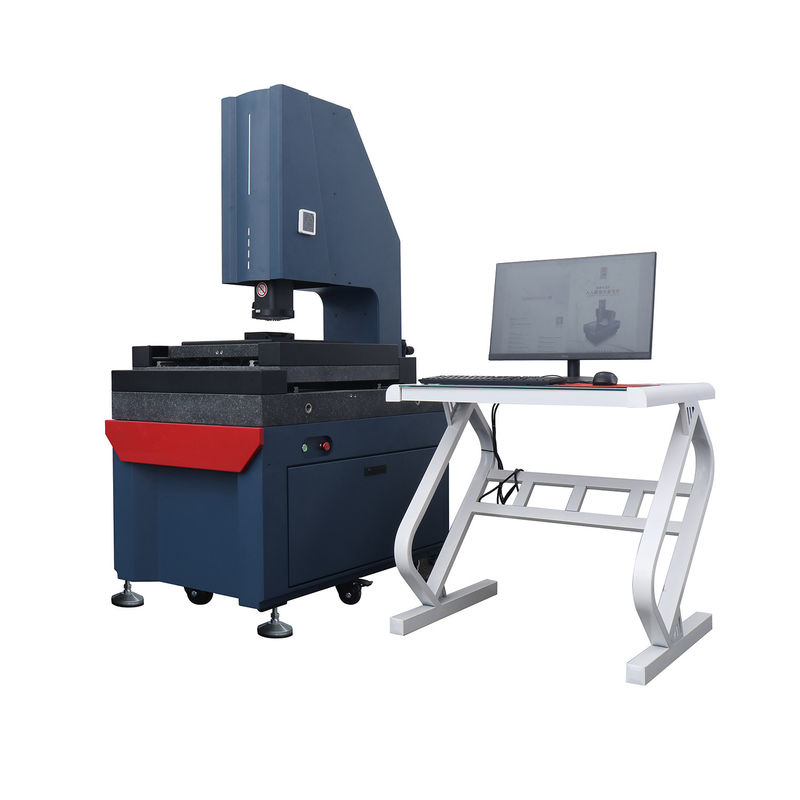

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

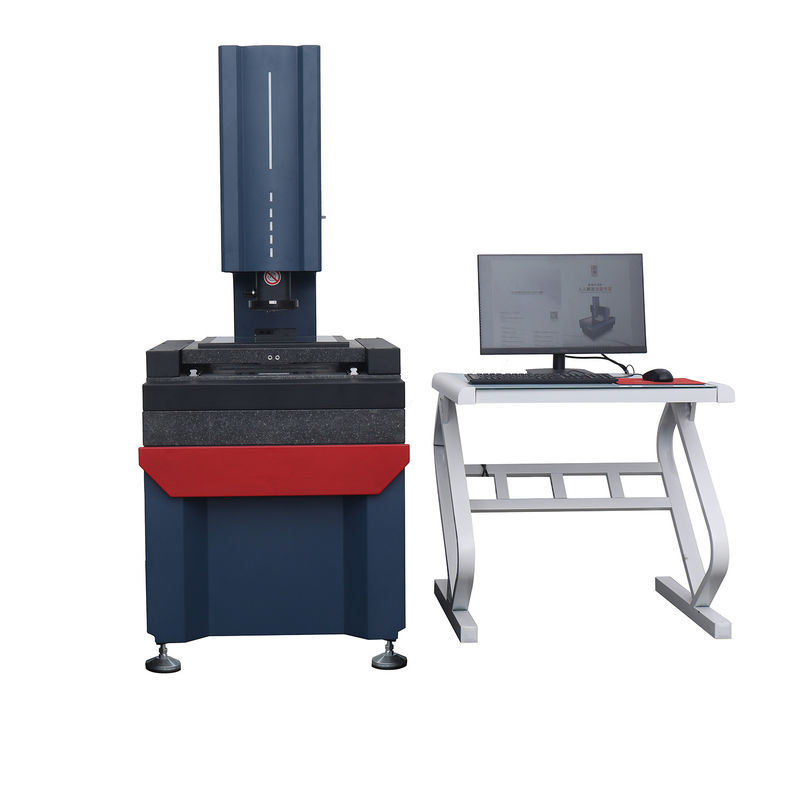

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

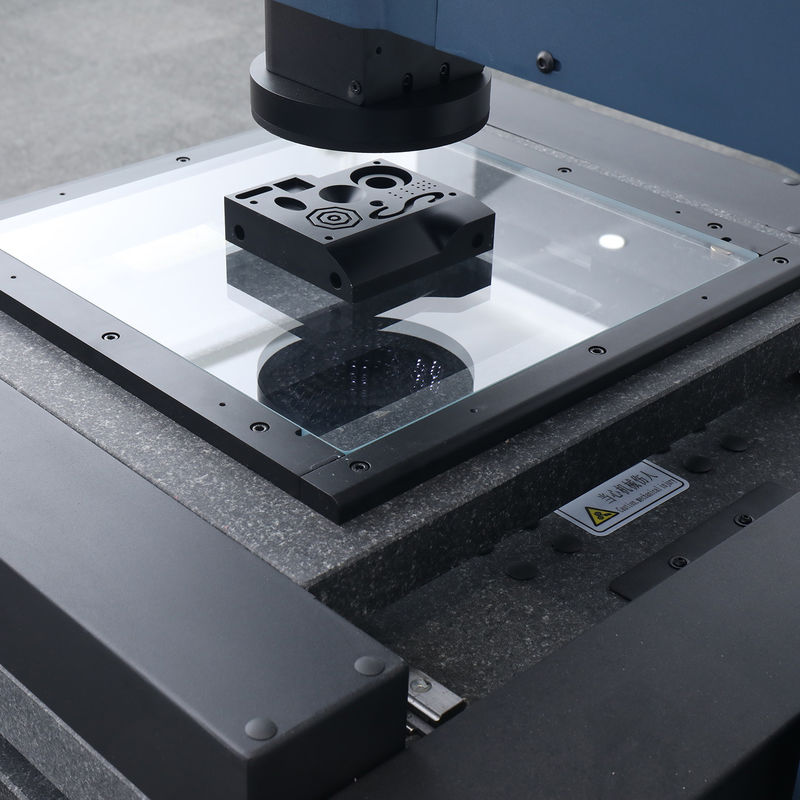

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

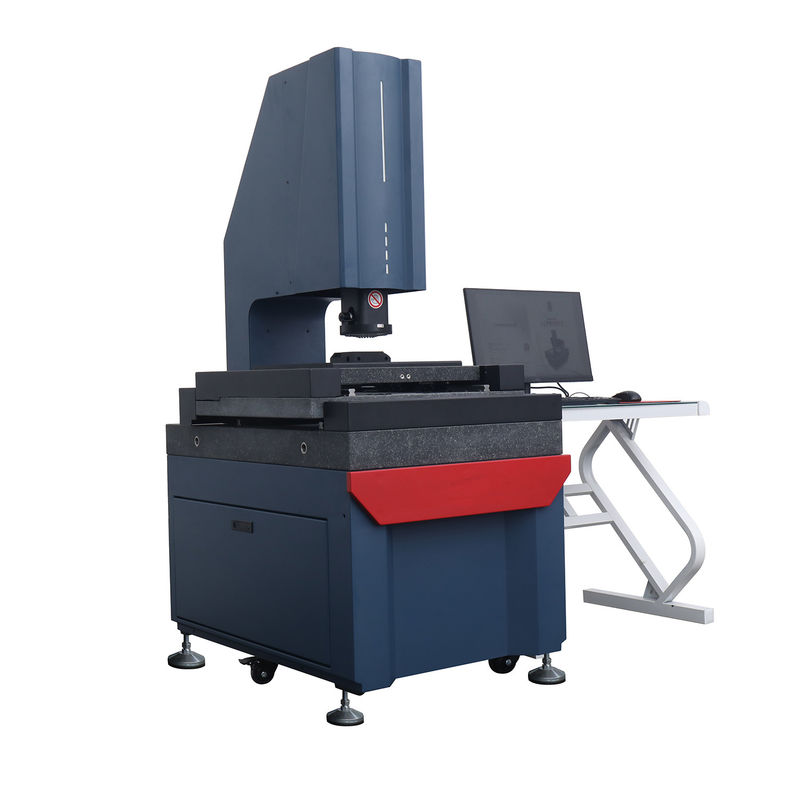

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

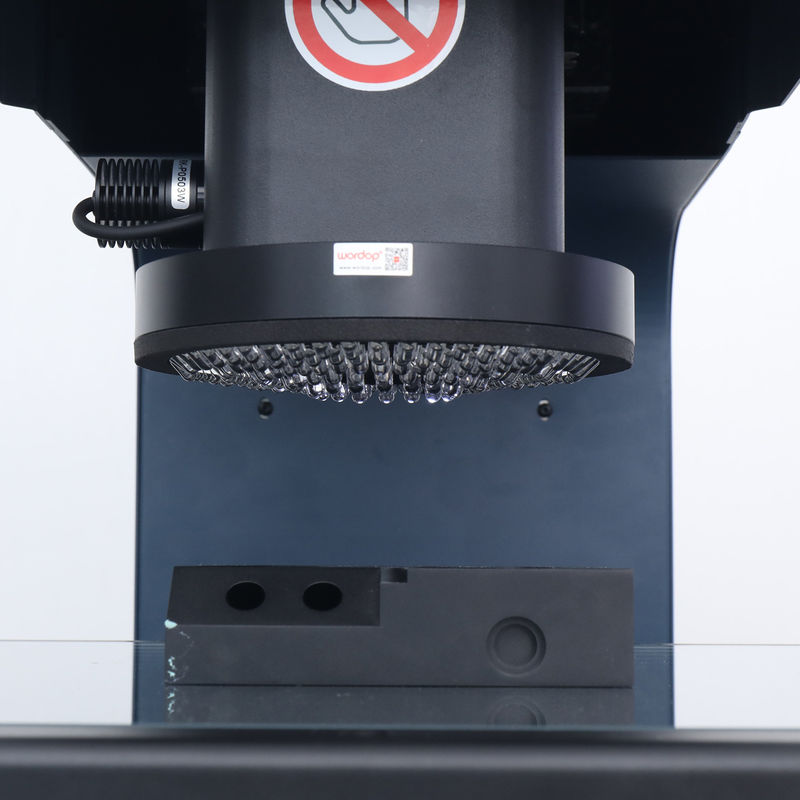

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

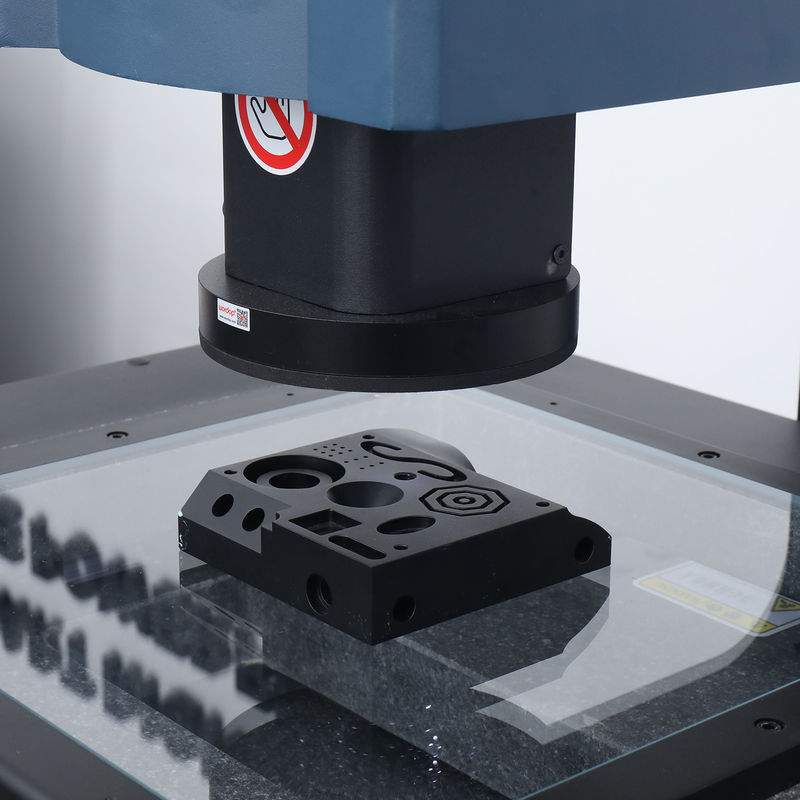

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic

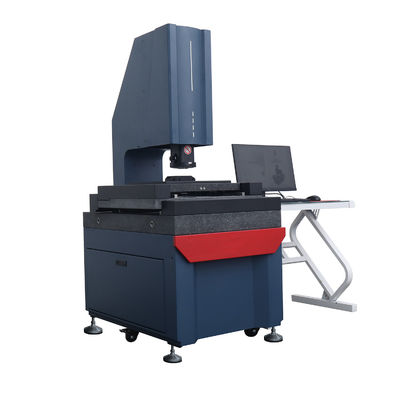

  • KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic
Get Price Contact Now

KV-Lite Series Servo Motor Cantilever automatic vision measuring machine

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 0

Product Introduction:

【 KV-Lite 】Series cantilevered fully automatic measuring instrument has a cantilevered structure, is compact and stable, and has high precision. It is suitable for rapid measurement of the dimensions on and around the production line



KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 1

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 2

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 3

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 4

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 5

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 6

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 7

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 8

Basic Functions:

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 9

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 10

Measurement Function:

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 11

Fields of Application:

KV-Lite Series Servo Motor Cantilever Vision Measurement System Automatic 12



Specifications:

Model

KV-Lite-322

KV-Lite-432

KV-Lite-542





Travel

X(mm)

300

400

500

Y(mm)

200

300

400

Z(mm)

200

200

200

Structure

Cantilever

Base Material

Marble

Image Sensors

1/3" digital CCD, high pixels, global color, large field of view

Resolution

0.5µm

Lens

6.5X

Magnifier Rate*1

30X-180X(0.7X-4.5X)





Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light



Detection Accuracy*2

X/Y-axis

(2.2+L/200)µm

(2.4+L/200)µm

(2.6+L/200)µm

Z-axis

(5.0+L/200)µm



Maximum Speed

XY(mm/s)

300 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

750×850×1600

        850×950×1600

       950×1050×1600

Instrument weight (kg)

380kg

480kg

580kg

Load-bearing (kg)

25kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%



*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
